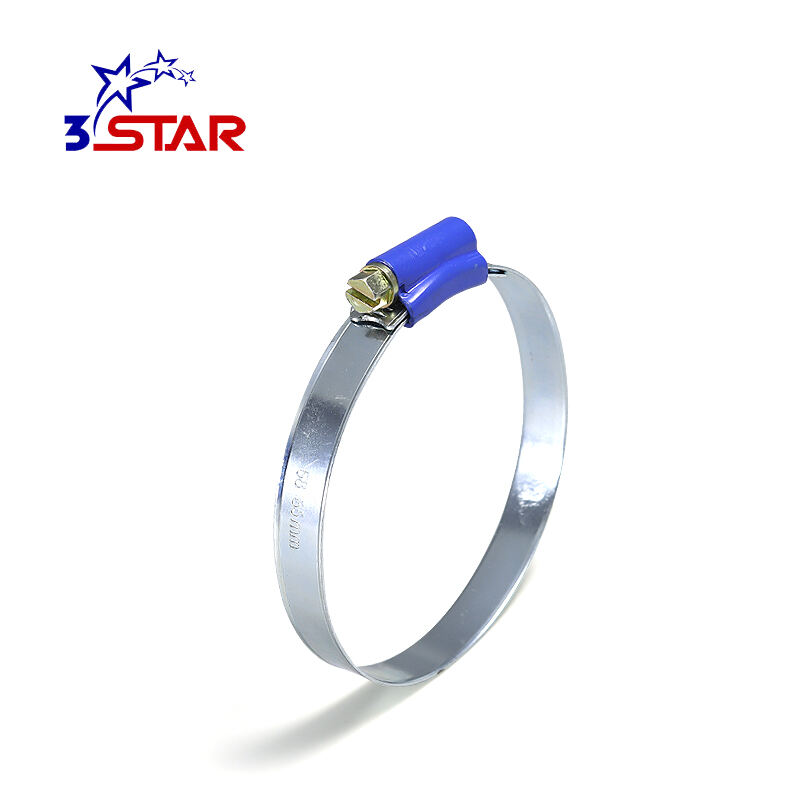

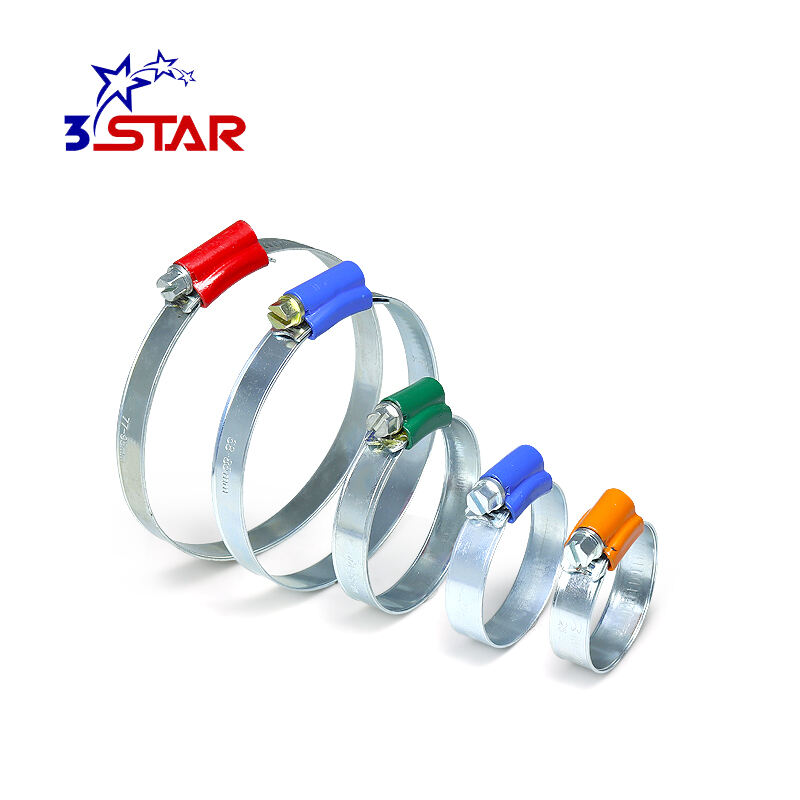

Blue Housing British Type Hose Clamp
• A newly designed housing positioned to more evenly distribute a high clamping force and give safer guidance of the emerging band
• The short housing saddle also provides optimal contact pressure on the hose
• High clamping force
• High break torque
• Lower idle torque
- ★ Product Description
- ★ Product Drawings
- ★ Material
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description

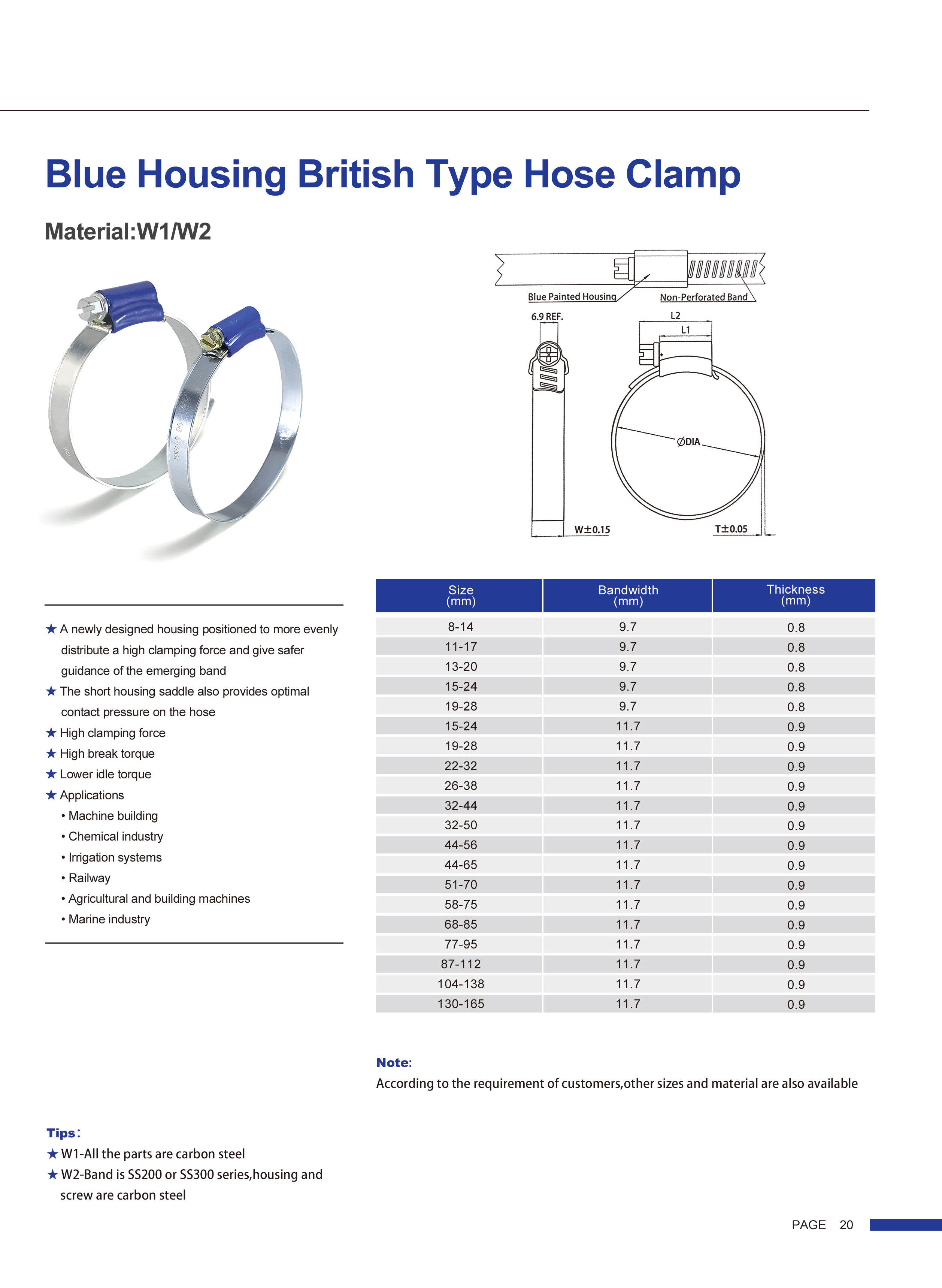

Parameters | Details |
Bandwidth*Thickness | 9.7*0.8/11.7*0.9mm |
Size | 8-14mm to all |
Screw | M7 |

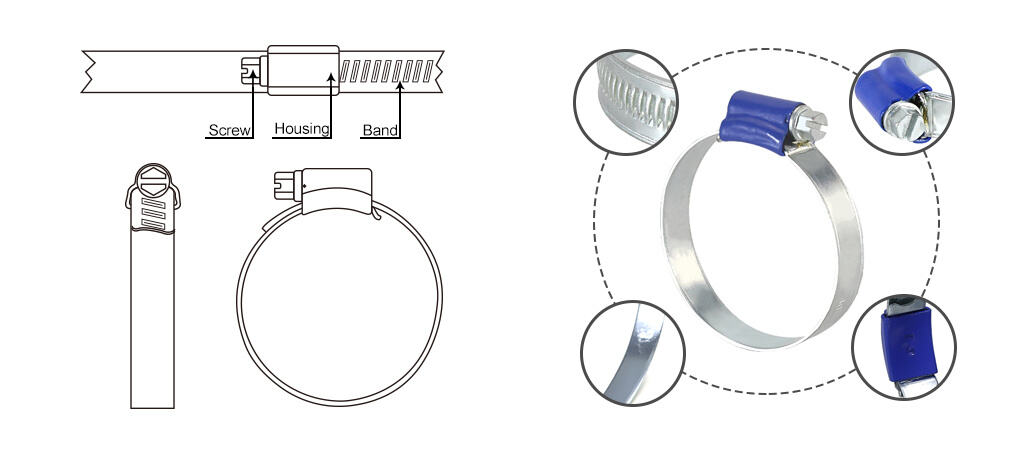

★ Product Drawings
★ Material
Material | Band | Screw | Housing |
W1 | Galvanized steel | Galvanized steel | Galvanized steel |
W2 | SS200/SS300 Series | Galvanized steel | Galvanized steel |
★ Application
• Machine building
• Chemical industry
• Irrigation systems
• Railway
• Agricultural and building machines
• Marine industry
