hose clamp band plastic end protrector
• Prevent the metal clamp from scratching
• heat-resistant, oil-resistant and corrosion-resistant
• Firm fitting, not easy to fall off
• Reduce vibration friction
- ★ Product Description
- ★ Product Drawings
- ★ Material
- ★ Advantages
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description

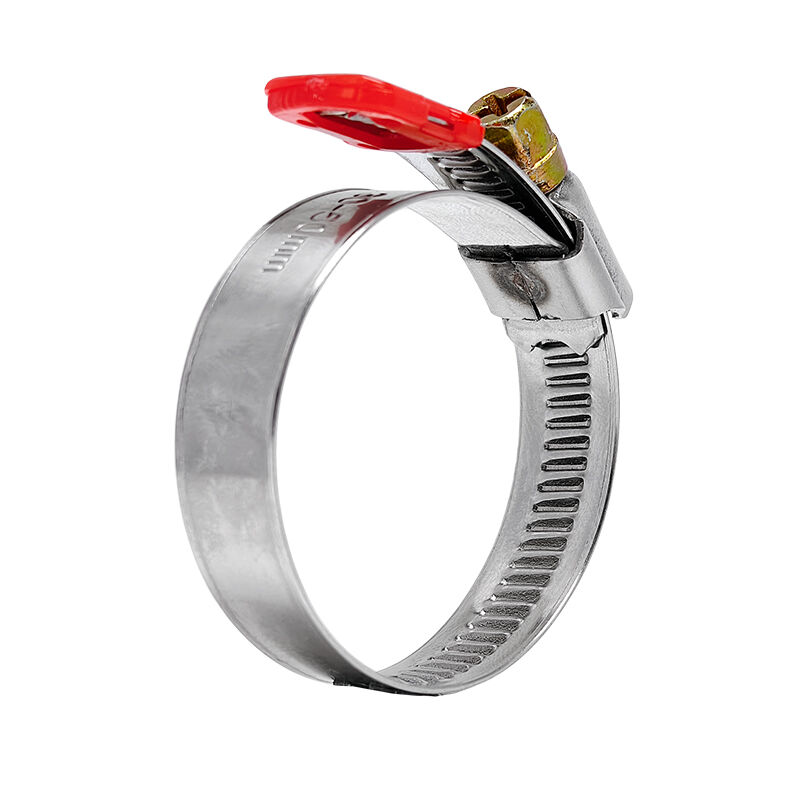

The hose clamp with plastic end guard consists of a metal hose clamp band and an integrated plastic end protector. The plastic cover wraps the sharp tail end of the metal band, effectively covering burrs and sharp edges. It is designed to fasten hoses firmly while providing safety and anti-abrasion protection for surrounding parts.
| Parameters | Details |
| Bandwidth*Thickness |
Zinc Plated:12*0.7mm Stainless Steel:12*0.6mm |
| Size | 12-20mm to all |
| Screw | 7mm |
| Screw Slot | "+" or "-" |

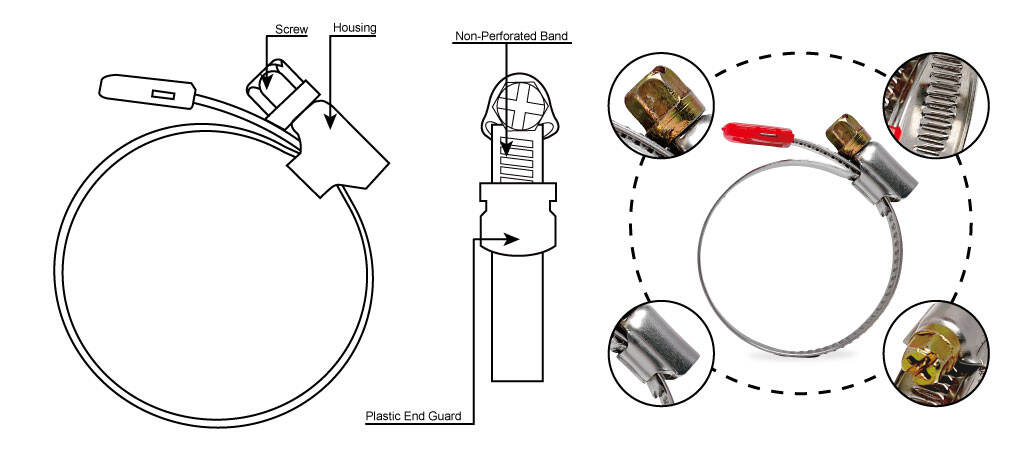

★ Product Drawings
★ Material
| Material | Band | Screw | Housing |
| W1 | Galvanized Steel | Galvanized Steel | Galvanized Steel |
| W2 | SS200/SS300 Series | Galvanized Steel | SS200/SS300 Series |
| W4 | SS200/SS300 Series | SS200/SS300 Series | SS200/SS300 Series |
| W5 | SS316 | SS316 | SS316 |
★ Advantages

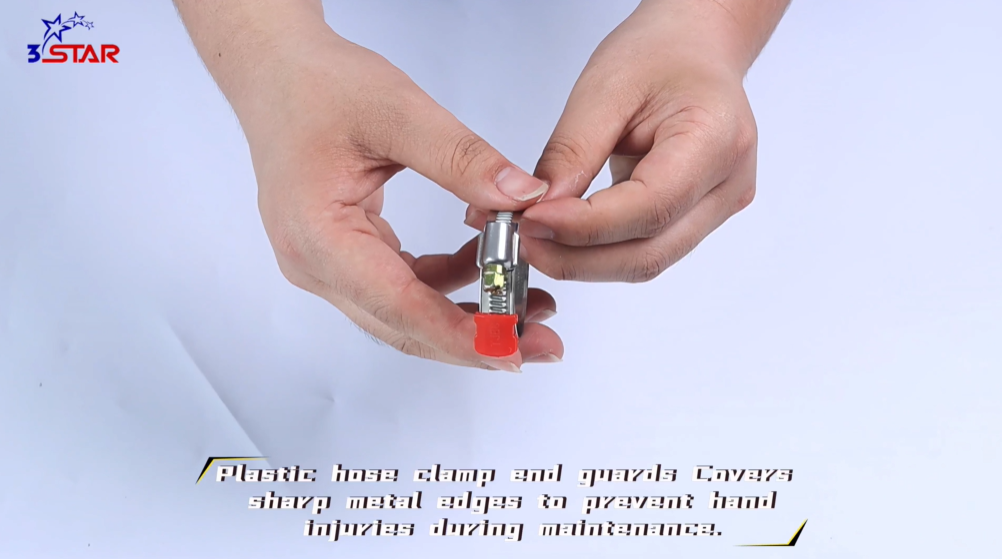

• Protect hands from being cut by sharp metal ends during installation and maintenance.
• Prevent the metal clamp from scratching, wearing or damaging nearby hoses, wires and rubber parts.
• The plastic end guard is heat-resistant, oil-resistant and corrosion-resistant, suitable for harsh working environments.
• Firm fitting, not easy to fall off, stable clamping force and good sealing performance.
• Easy to install, neat appearance, improve overall assembly quality.
• Reduce vibration friction and extend service life of hoses and accessories.
★ Application
• Automotive: Cooling system, fuel hose, air intake pipeline, vacuum pipe
• Mechanical equipment: Hydraulic and pneumatic pipeline connections
• Household appliances: Water heater, washing machine, air conditioner water pipe
• Marine and motorcycle: Water pipe, fuel pipe fixed connection
• Agricultural machinery and irrigation pipeline systems
