T Bolt Spring Pipe Clamp
• Strong T-Bolt Clamping
• Spring Design
• Vibration Resistant
• Corrosion & High-Temperature Resistant
- ★ Product Description
- ★ Product Drawings
- ★ Material
- ★ Advantages
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description
The T Bolt Spring Pipe Clamp combines high-strength T-bolt construction with an integrated spring design, delivering uniform clamping force while compensating for thermal expansion, contraction, and vibration. Made from premium stainless steel, it offers durability, corrosion resistance, and reliable sealing for demanding environments. Ideal for automotive turbo systems, industrial machinery, marine, heavy equipment, and agricultural applications.

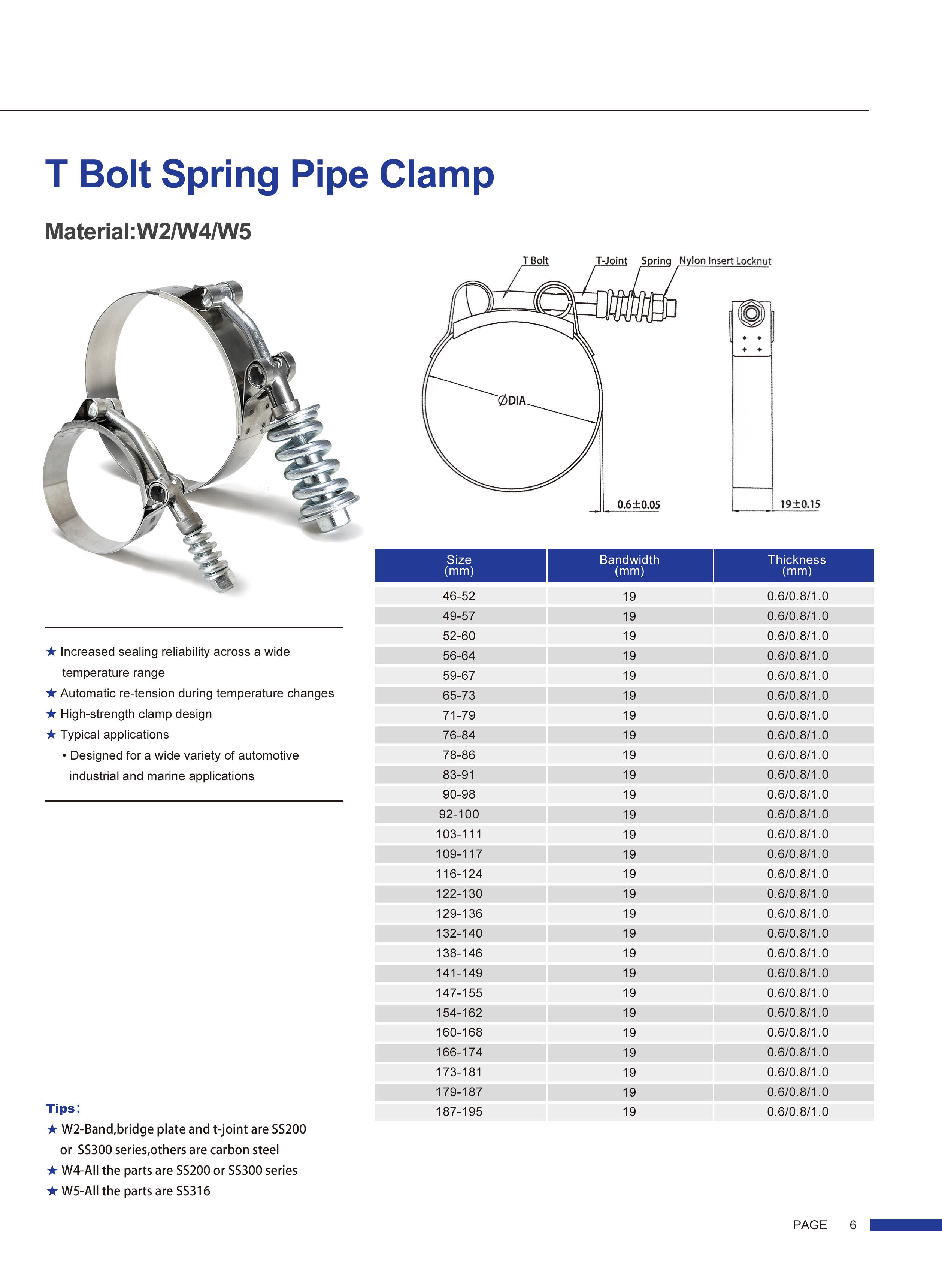

| Parameters | Details |
| Bandwidth | 19mm |
| Thickness | 0.6/0.8/1.0mm |
| Size | 46-52mm to all |
| Bolt | M6 |
| Spring | Carbon Steel / Stainless Steel |

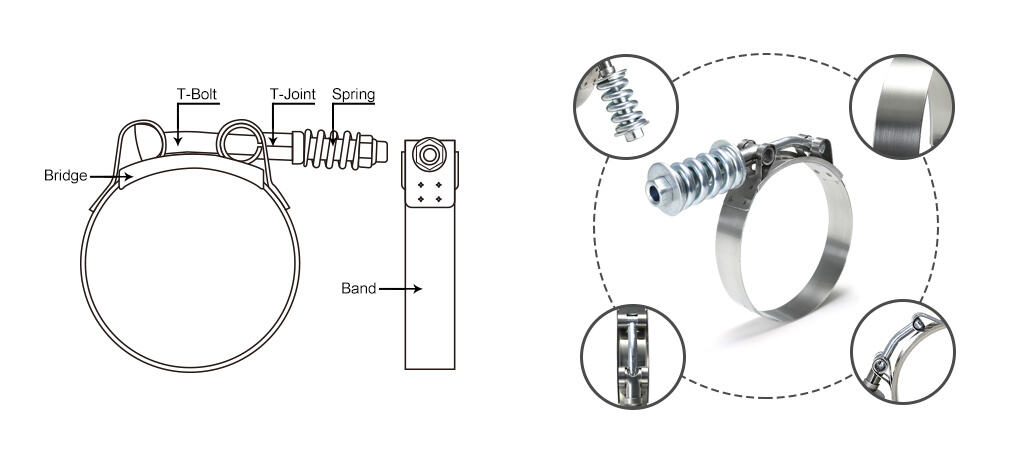

★ Product Drawings
★ Material
| Material | Band | Bolt | T-Joint | Bridge |
| W2 | SS200/SS300 Series | Galvanized steel | SS200/SS300 Series | Galvanized steel |
| W4 | SS200/SS300 Series | SS200/SS300 Series | SS200/SS300 Series | SS200/SS300 Series |
| W5 | SS316 | SS316 | SS316 | SS316 |
★ Advantages
• Strong T-Bolt Clamping: Provides secure and stable hose/pipe connections.
• Spring Design: Automatically compensates for thermal expansion and vibration.
• Leak-Proof Performance: Ensures reliable sealing for fluids and gases.
• Vibration Resistant: Maintains clamp stability under heavy vibration.
• Corrosion & High: Temperature Resistant – Durable stainless steel construction.
★ Application
• Designed for a wide variety of automotive industrial and marine applications
