Type A PP Camlock Coupling
• Male Adaper x Female Thread
• Easy and Quick Connection and Disconnection
• Corrosion and Abrasion Resistant
- ★ Product Description
- ★ Product Display
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description

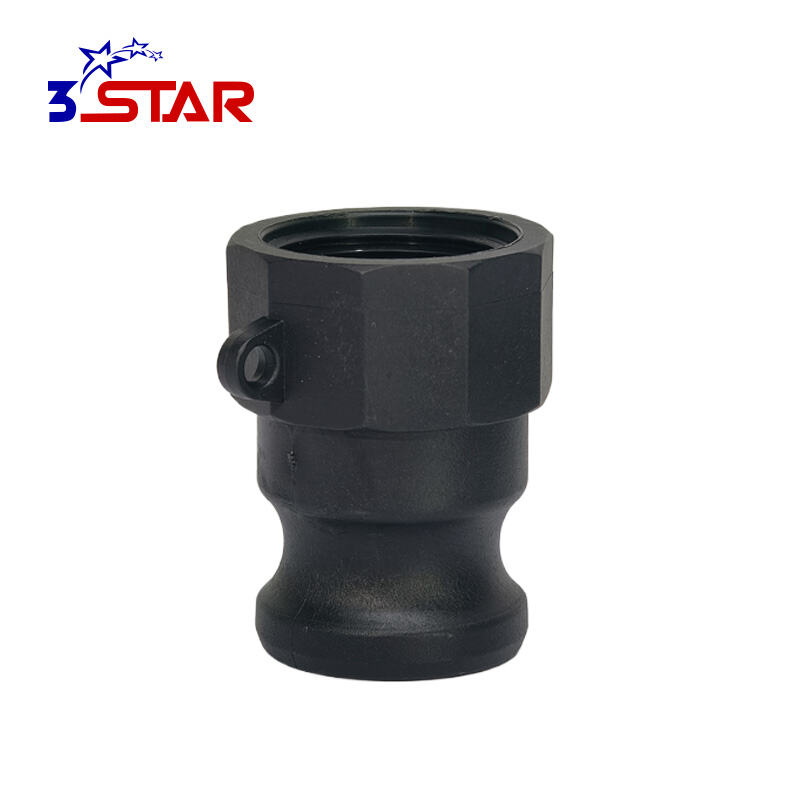

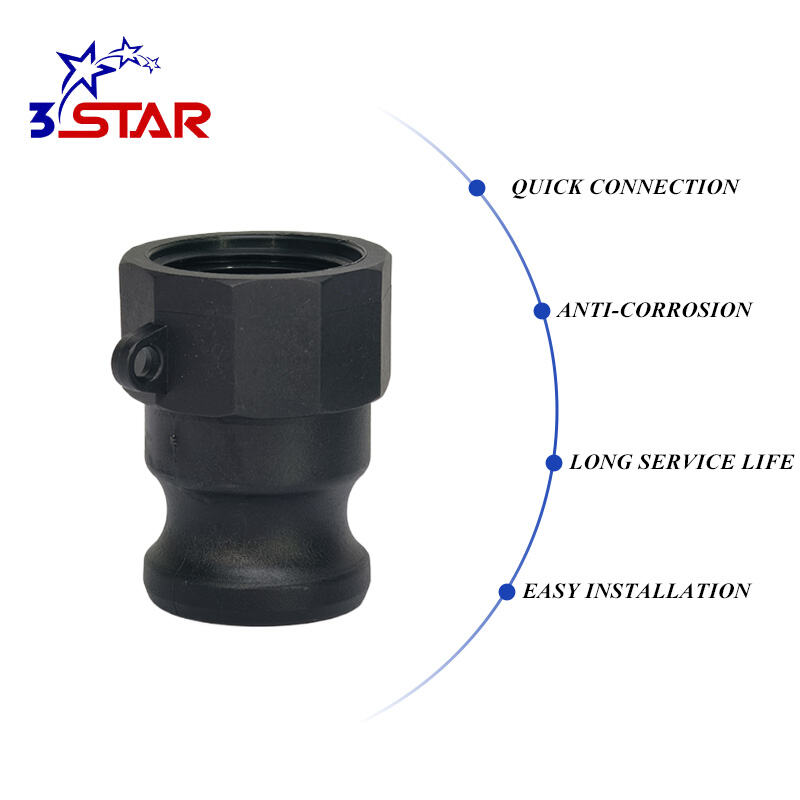

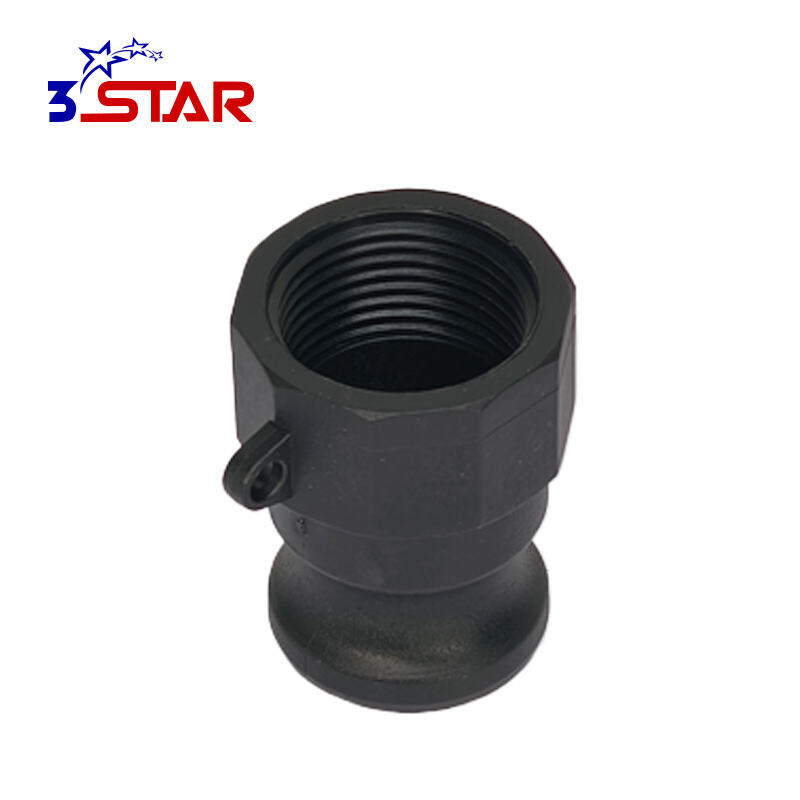

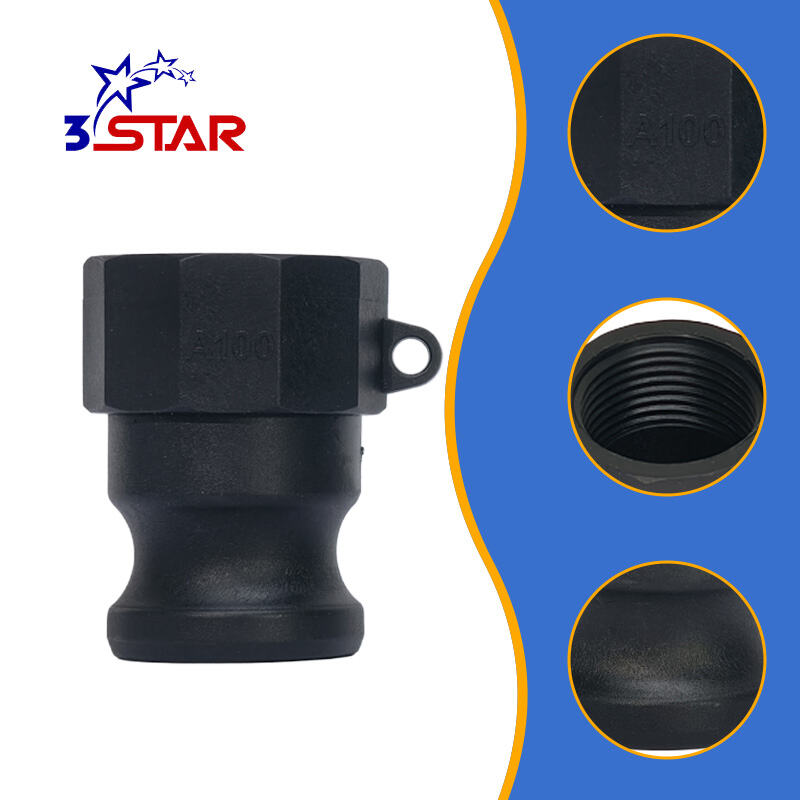

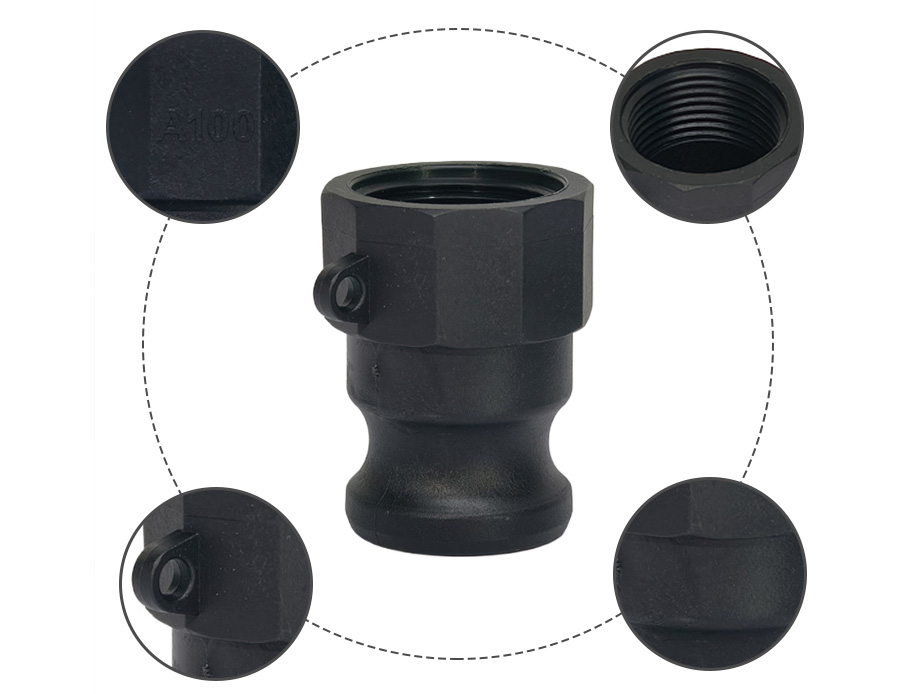

Polypropylene Camlock Fitting Type A has a male camlock quick connect coupling on one side and an equal inch female NPT thread on the other side. The male camlock side of this coupler will only attach to an equal inch female camlock. The female threaded side will connect to a male NPT (National Pipe Tapered) threaded pipe. The body of this cam and groove fitting is made of Polypropylene. Polypropylene cam lock fittings are lightweight and are corrosion and abrasion resistant.
| Related parameters | Details |
| Standard | Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828. |
| Material | Aluminum,Stainless steel ,Brass ,PP, Nylon |
| Sizes | from 1/2" to 8" |
| Types | A, B, C, D, DC, DP, E, F |
| Cam levers | We use stainless steel cam levers or brass cam levers. |
| Pins, Rings and Safety clips | We use steel plated Pins,Rings and Safety clips. |
| Sealings | NBR, EPDM, Viton, PTFE envelop gasket, Other materials are available on request. |
| Threads | NPT, BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT) |
| Surface treatment | Pickling |
| Casting method | Forging |
| Other |
1.We are factory,best price will be offer 2.Free sample available 3.factory visit welcome |
★ Product Display
★ Application

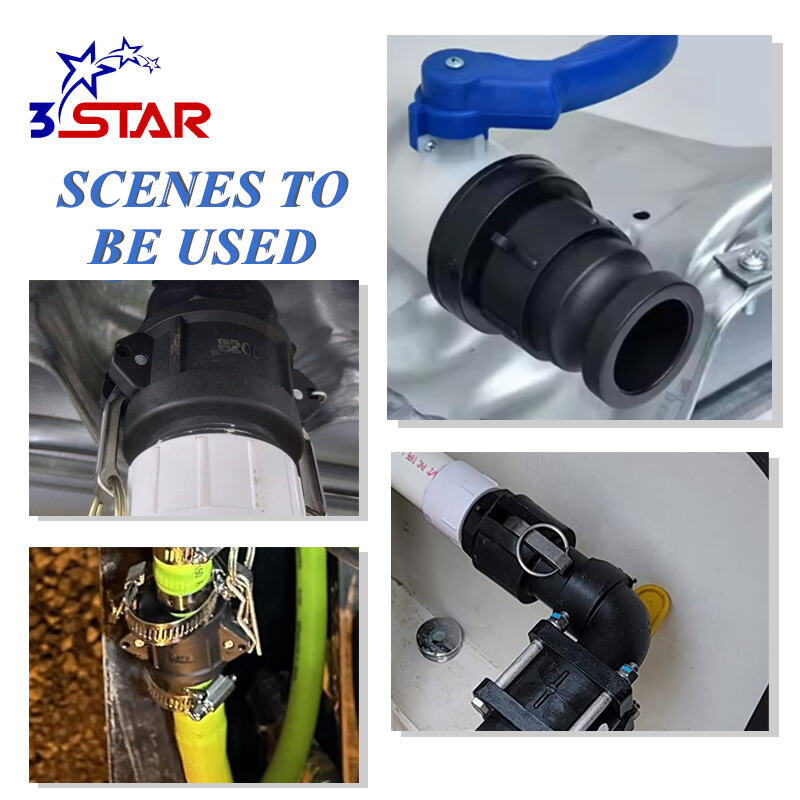

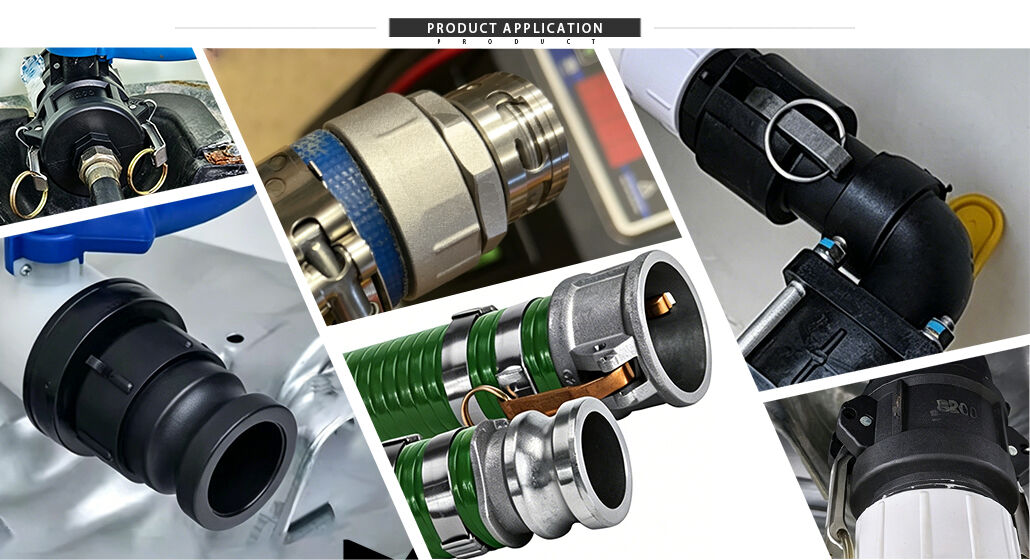

These camlock fittings are often used in applications such as vacuum trucks, vacuum trailers, frac tanks, fuel delivery, grain movement and waste water industry. Camlock (cam and groove) fittings are popular couplings because they are economical and can easily be connected and disconnected.
