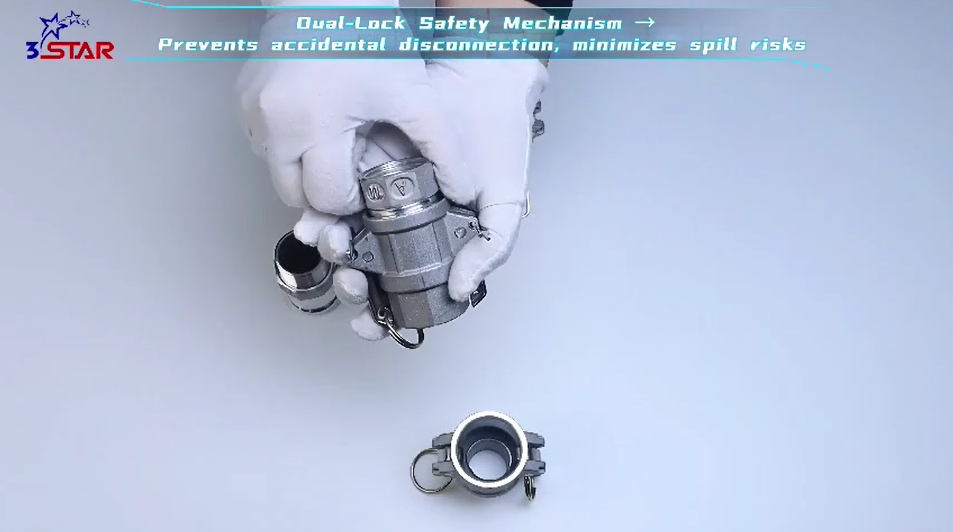

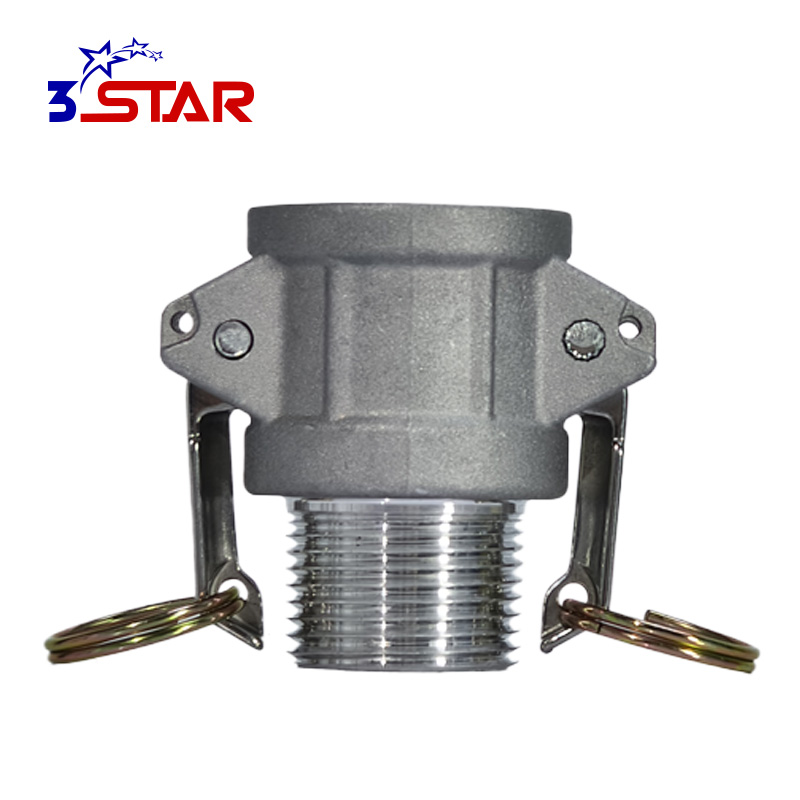

Type B Aluminum Camlock Coupling
• Female Coupler X Male Thread
• Corrosion resistance
• Sturdy, practical
• Easy to install
- ★ Product Description
- ★ Product Display
- ★ Advantages
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description
Camlocks are often referred to as Cam and Groove Couplings.This is because they are engineeres with grooves that allow the vari-ous styles to fit together creating a tight seal.Their simple structue and easy operation make them very popular.Camlocks are con-nected by simply opening the coupler ams and insering the adaptor into the coupler.As the arms are pushed down to the sides,thetwo connectors are forced tightly together creating the bonded seal on aninternal gasket.
| Related parameters | Details |
| Standard | Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828. |
| Material | Aluminum,Stainless steel ,Brass ,PP, Nylon |
| Sizes | from 1/2" to 8" |
| Types | A, B, C, D, DC, DP, E, F |
| Cam levers | We use stainless steel cam levers or brass cam levers. |
| Pins, Rings and Safety clips | We use steel plated Pins,Rings and Safety clips. |
| Sealings | NBR, EPDM, Viton, PTFE envelop gasket, Other materials are available on request. |
| Threads | NPT, BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT) |
| Surface treatment | Pickling |
| Casting method | Forging |
| Other |
1.We are factory,best price will be offer 2.Free sample available 3.factory visit welcome |

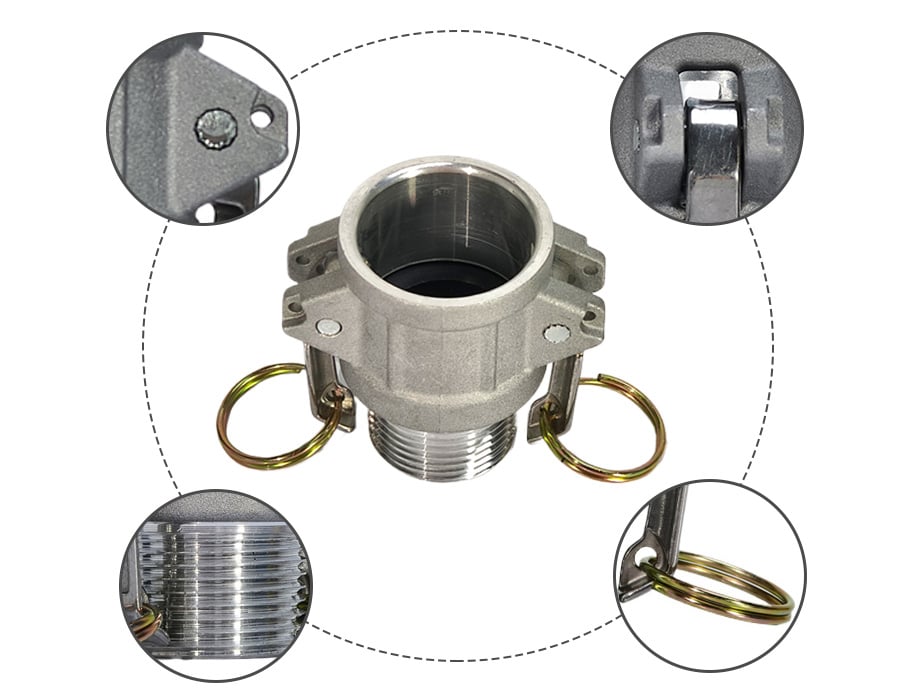

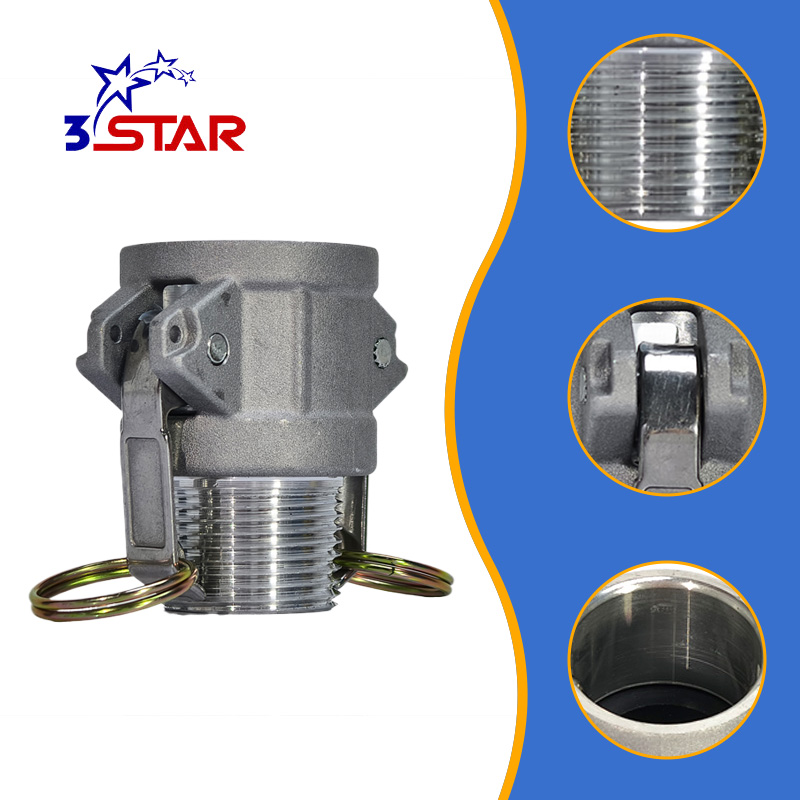

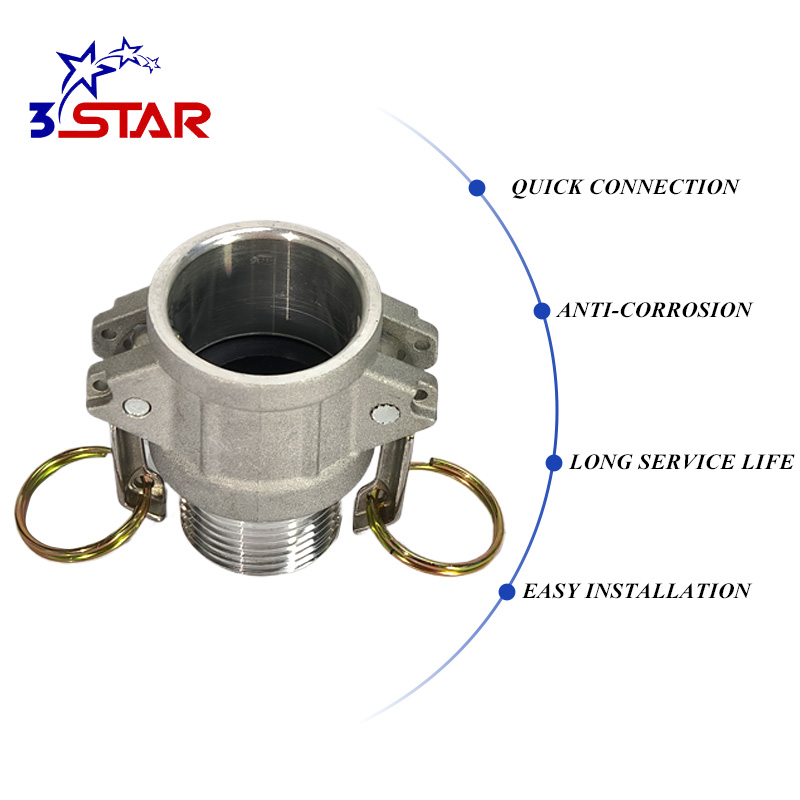

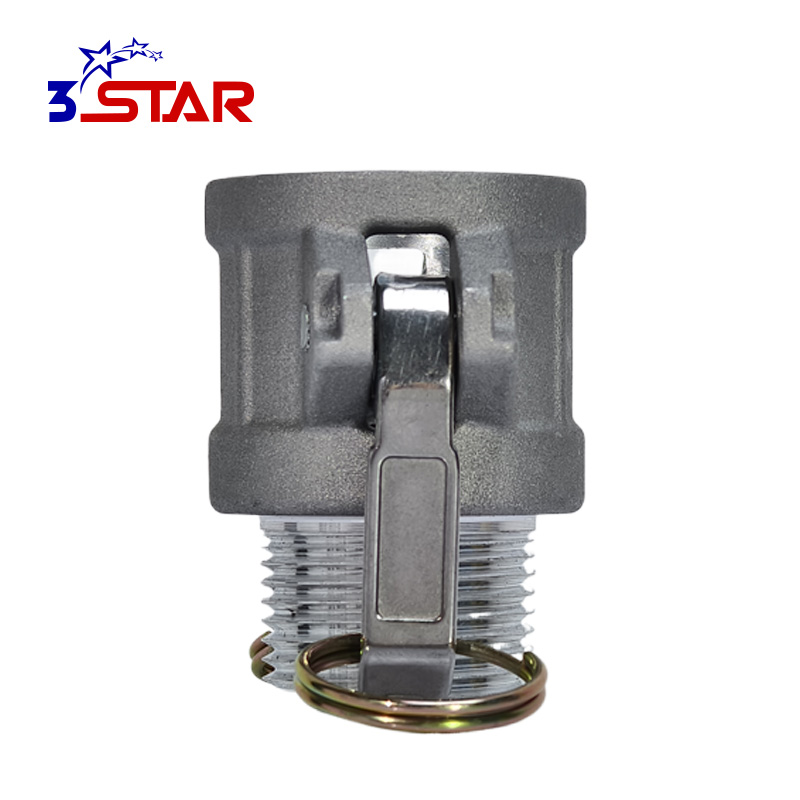

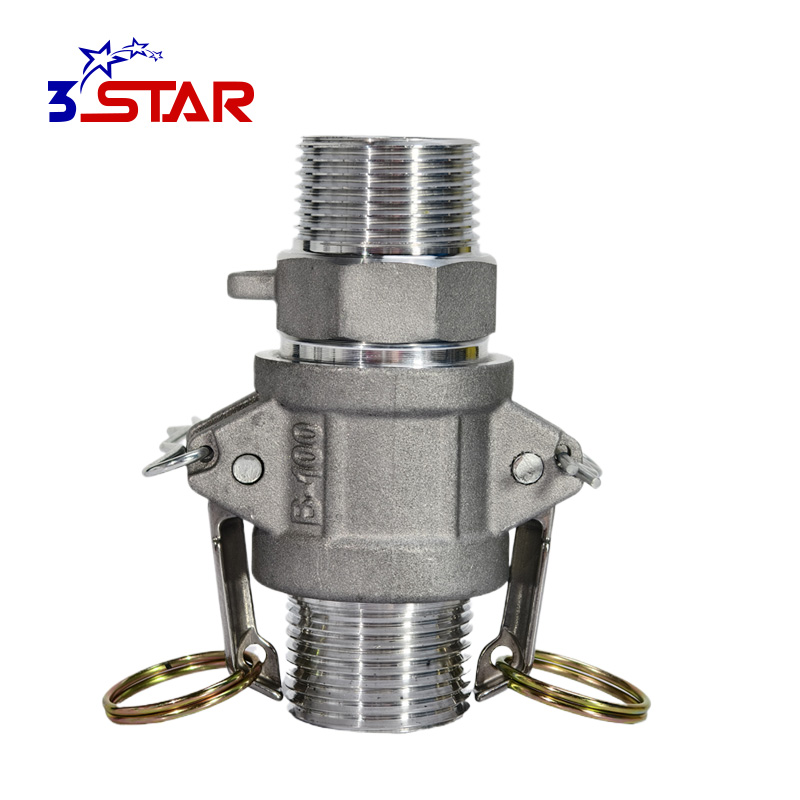

★ Product Display
★ Advantages
1. Handles are made of stainless steel AISI 304 as a standad.
2. Camlock are capable of transporting liquids,solids and gases,except lquid gas and steam.
3. Coupling with multi-serated hose shank &collar are available on customer's request.

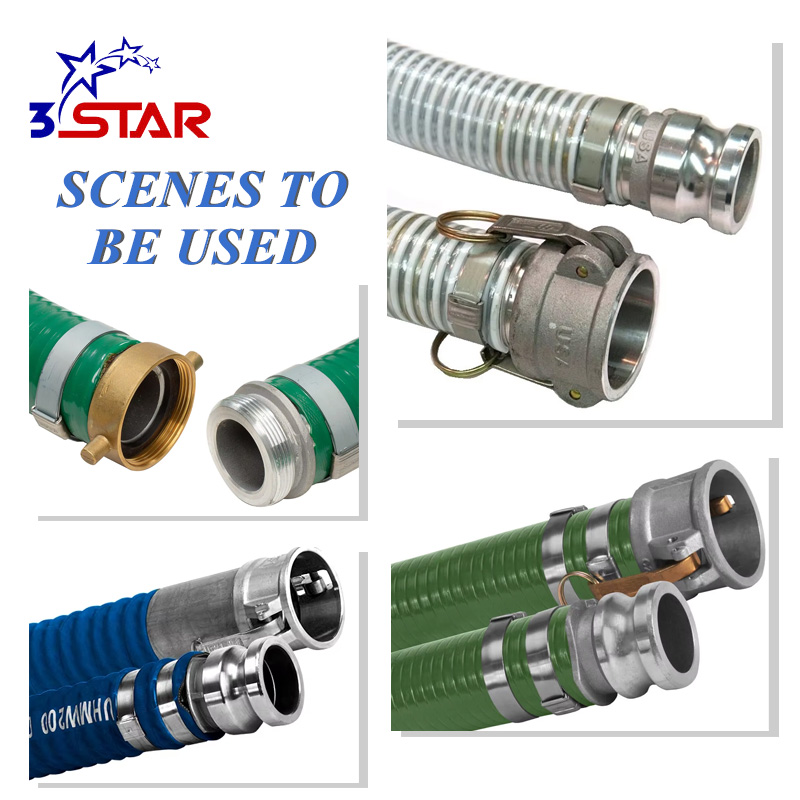

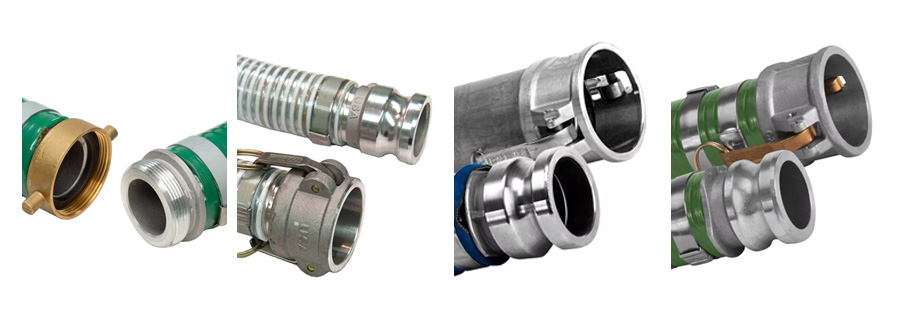

★ Application
Building water supply and drainage, fire protection systems, natural gas pipeline installation, natural gas & petroleum industry, natural gas transportation, water supply and drainage systems.
