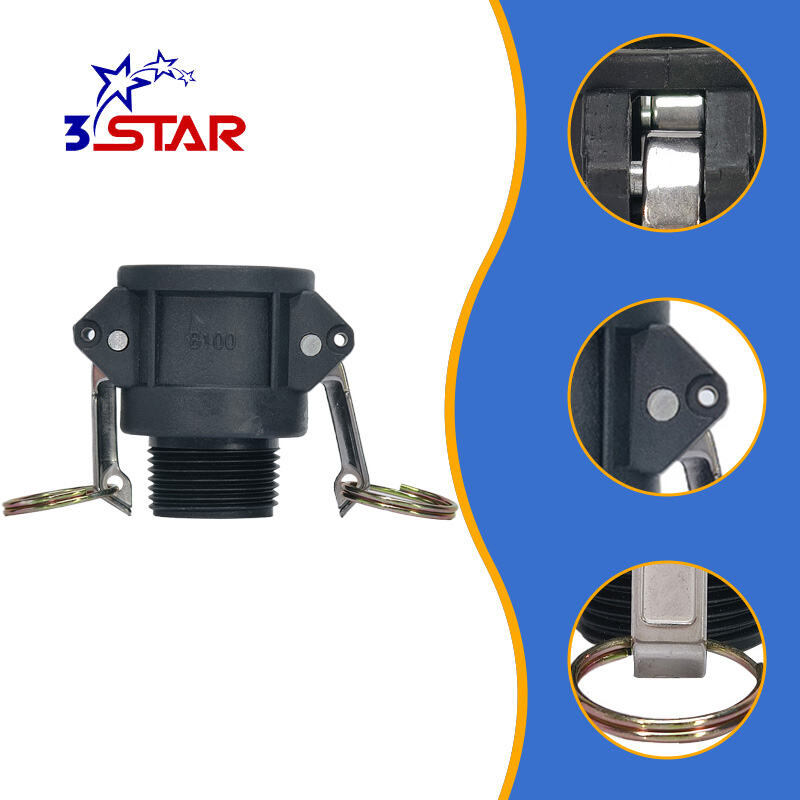

Type B PP Camlock Coupling
• Female Coupler X Male Thread
• Easy and Quick Connection and Disconnection
• Corrosion and Abrasion Resistant
- ★ Product Description
- ★ Product Display
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description
Camlocks also called cam and groove coupling, a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.
| Related parameters | Details |
| Standard | Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828. |
| Material | Aluminum,Stainless steel ,Brass ,PP, Nylon |
| Sizes | from 1/2" to 8" |
| Types | A, B, C, D, DC, DP, E, F |
| Cam levers | We use stainless steel cam levers or brass cam levers. |
| Pins, Rings and Safety clips | We use steel plated Pins,Rings and Safety clips. |
| Sealings | NBR, EPDM, Viton, PTFE envelop gasket, Other materials are available on request. |
| Threads | NPT, BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT) |
| Surface treatment | Pickling |
| Casting method | Forging |
| Other |
1.We are factory,best price will be offer 2.Free sample available 3.factory visit welcome |

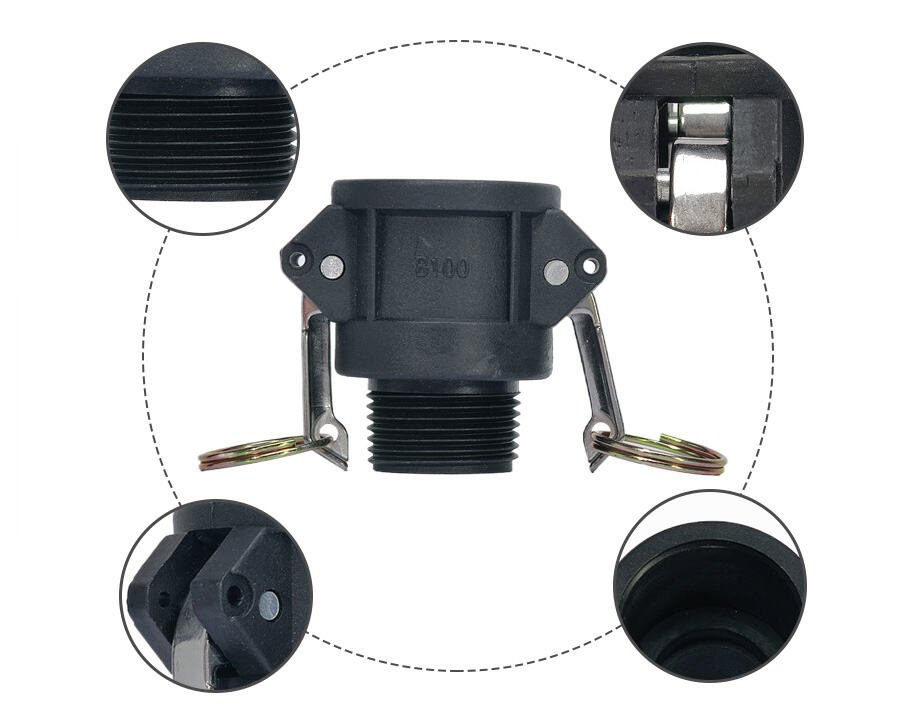

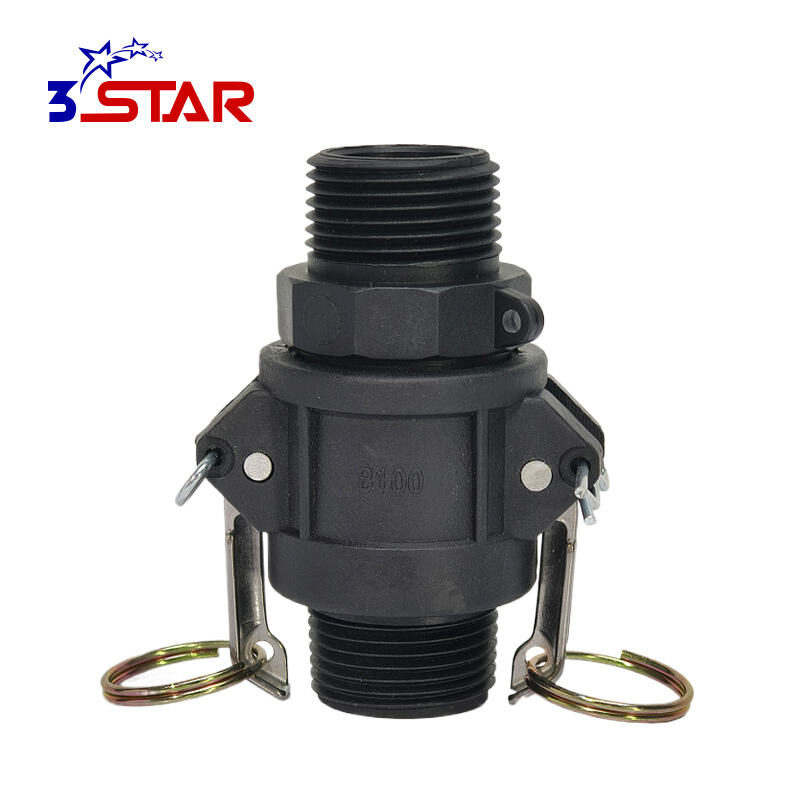

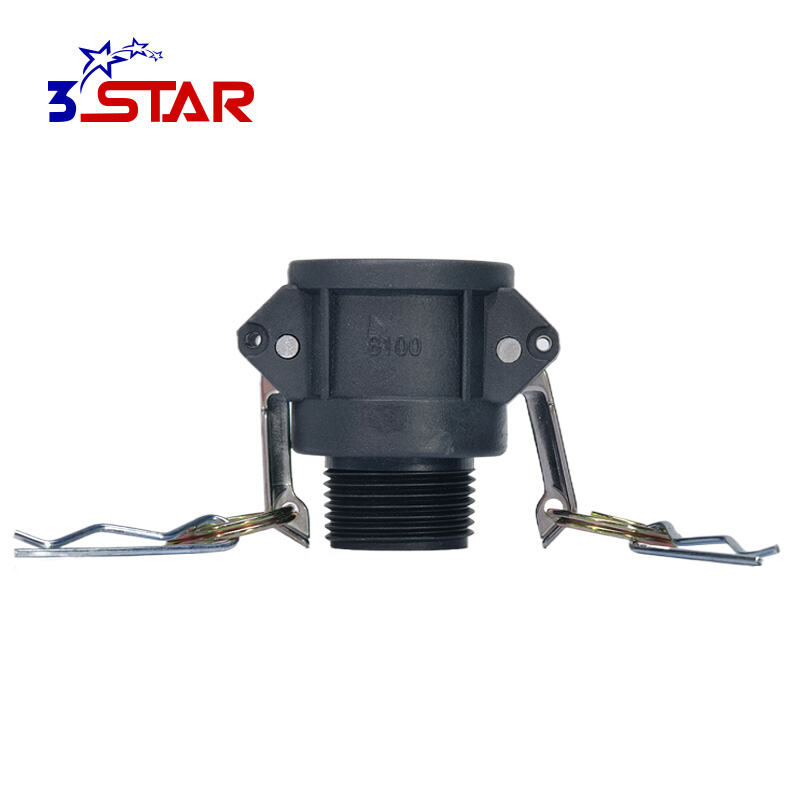

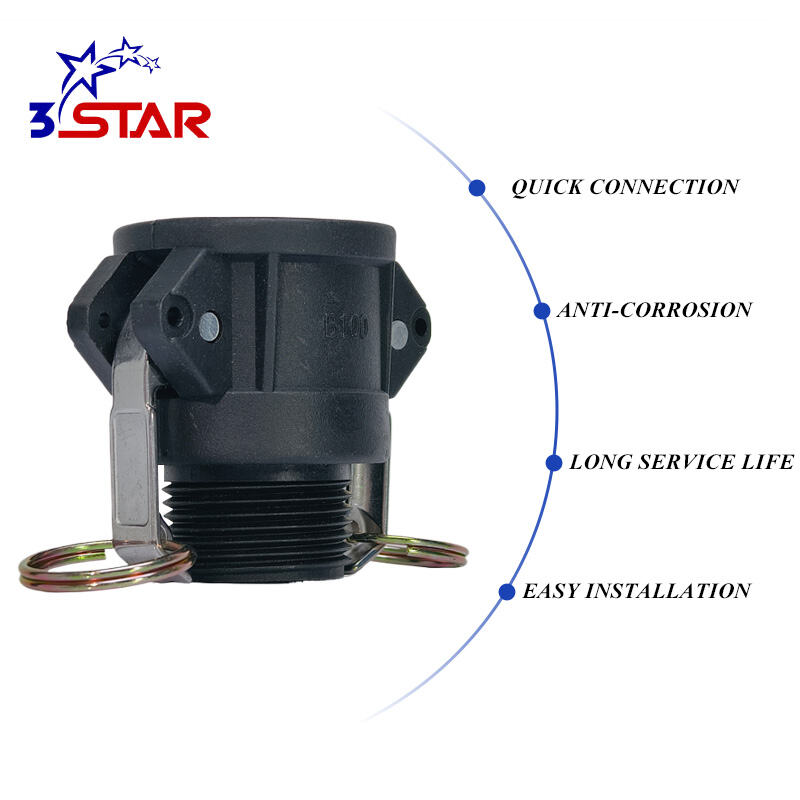

★ Product Display
★ Application

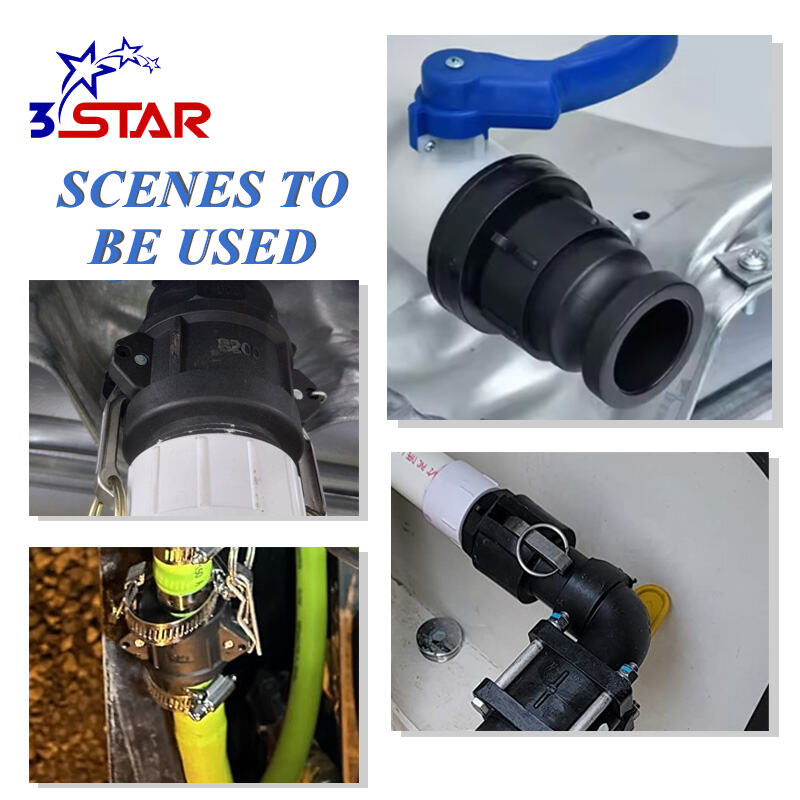

These camlock fittings are often used in applications such as vacuum trucks, vacuum trailers, frac tanks, fuel delivery, grain movement and waste water industry. Camlock (cam and groove) fittings are popular couplings because they are economical and can easily be connected and disconnected.
