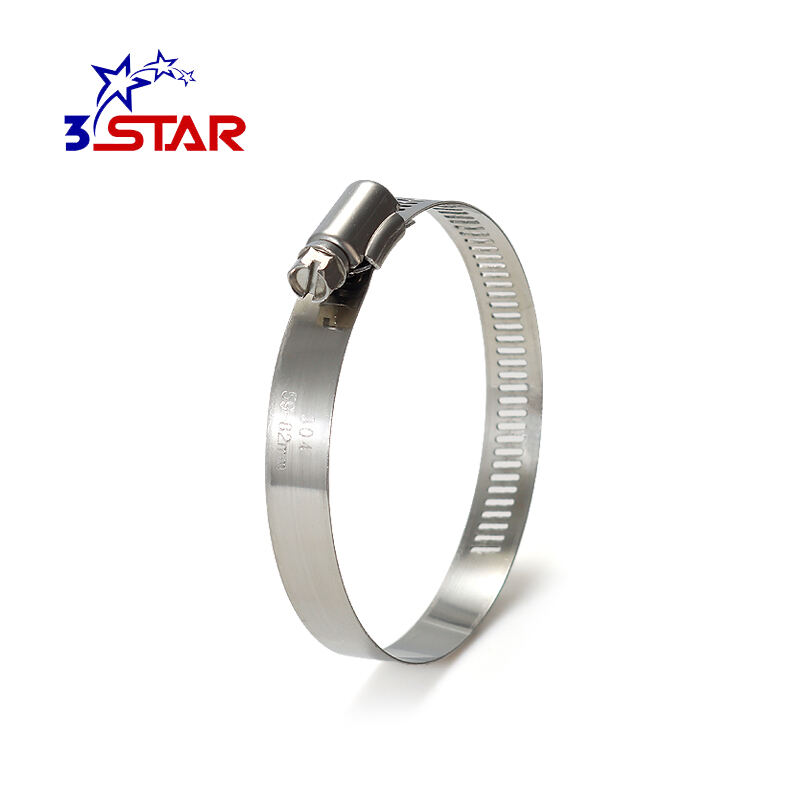

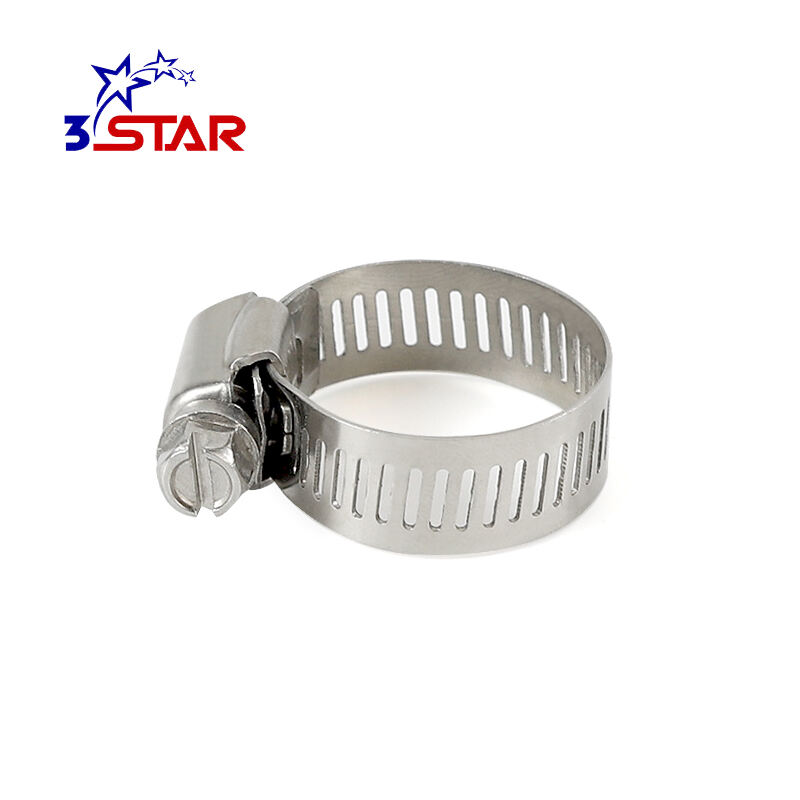

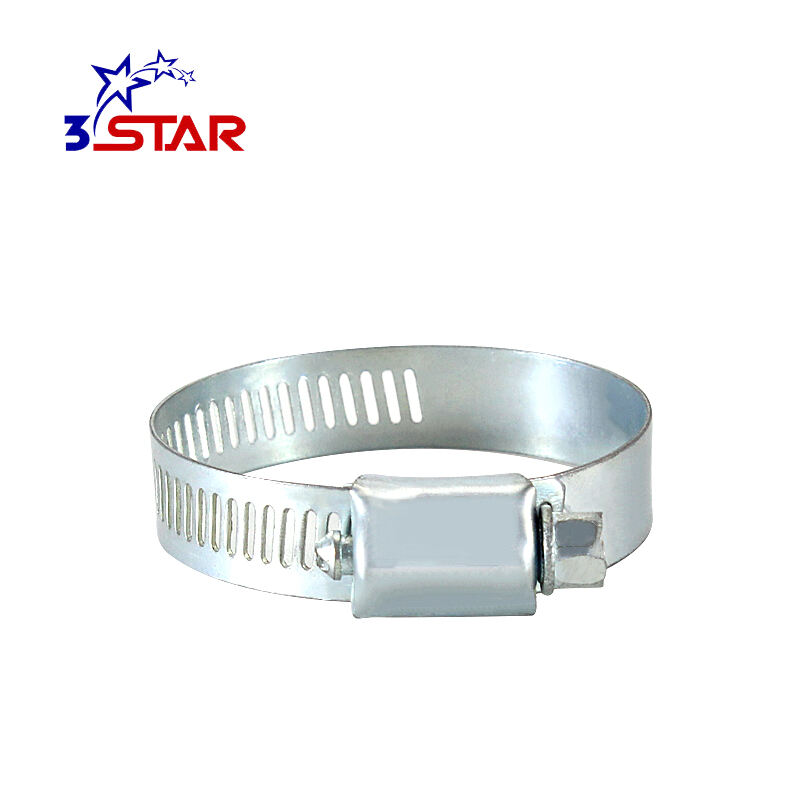

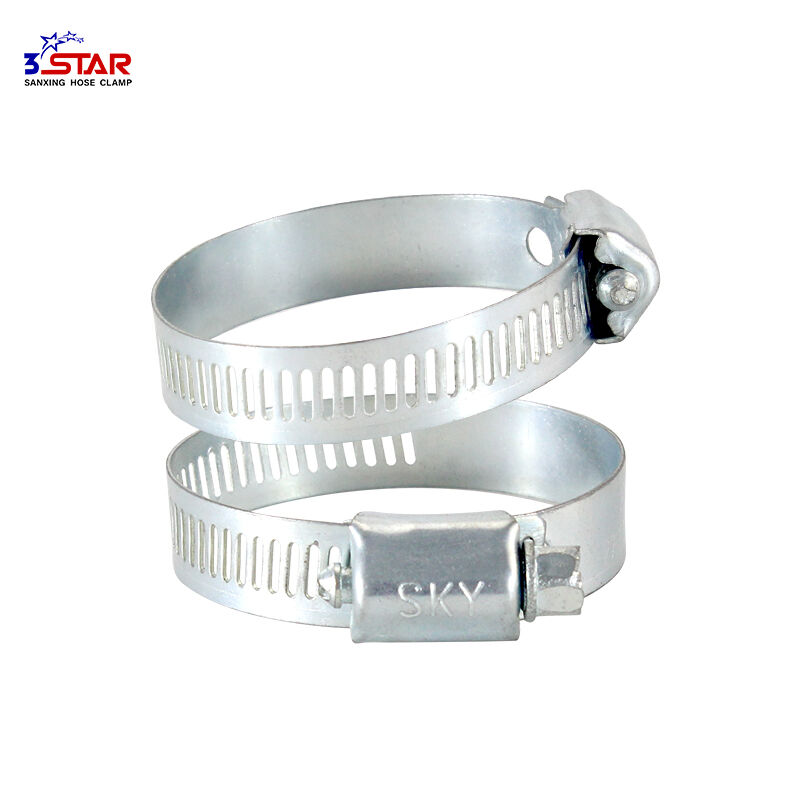

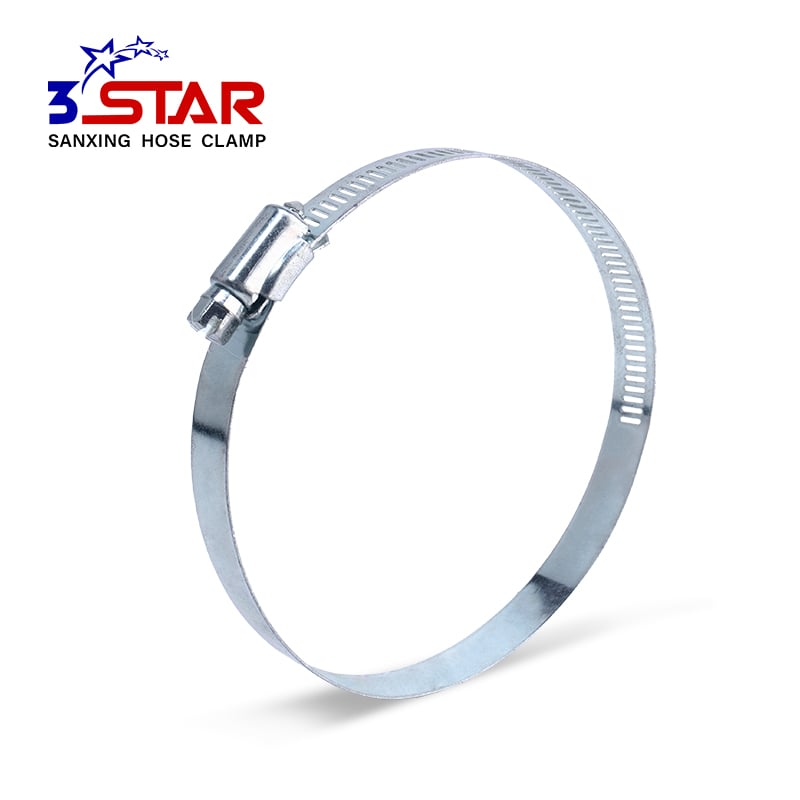

American Type Worm Drive Hose Clamp-12.7mm
• Screw housing for easy tightening
• In-line’ housing, which enables every thread on the worm to engage with the band
• Perforated band
- ★ Product Description
- ★ Product Drawings
- ★ Material
- ★ Advantages
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description
American Type Worm Drive Hose Clamp adopts a classic worm gear drive mechanism, with flexible adjustable range and stable clamping performance. Made of high-quality carbon steel and available with zinc plating, electrophoretic or other surface treatments, this clamp features a sturdy band, smooth worm screw and rational structure. It is widely recognized for easy operation, reliable sealing and strong adaptability, and serves as a universal solution for hose connection across various industries.
| Parameters | Details |
| Bandwidth*Thickness |
Zinc Plated:12.7*0.7mm Stainless Steel:12.7*0.6mm |
| Size | 16-25mm to all |
| Screw | M8 |
| Screw Slot | "+" or "-" |

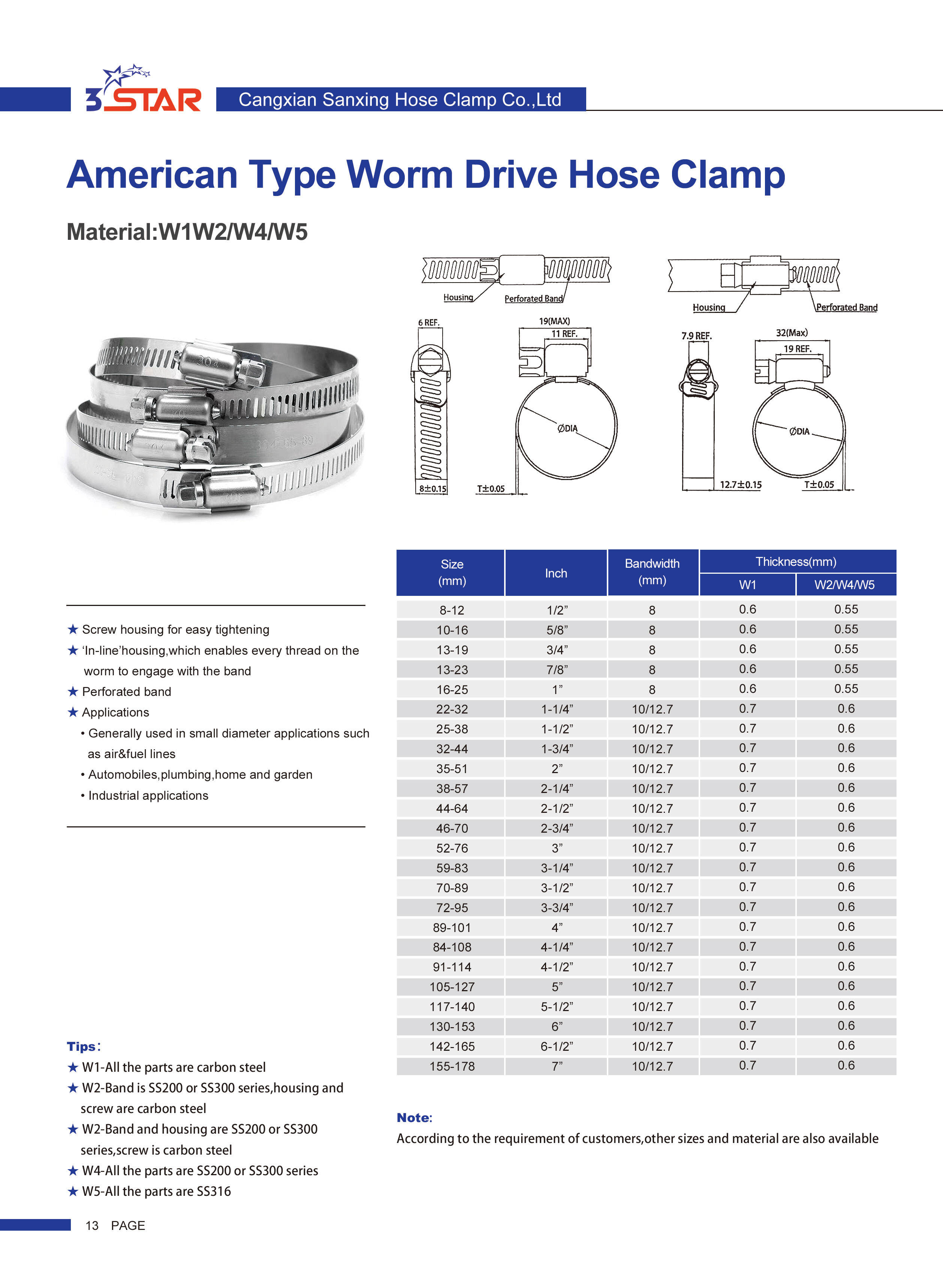

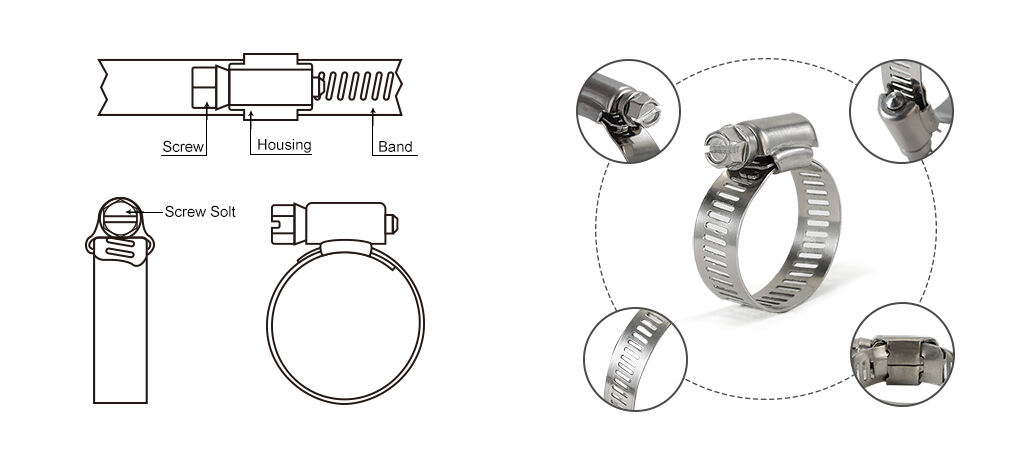

★ Product Drawings
★ Material
| Material | Band | Screw | Housing |
| W1 | Galvanized Steel | Galvanized Steel | Galvanized Steel |
| W2 | SS200/SS300 Series | Galvanized Steel | Galvanized Steel |
| SS200/SS300 Series | Galvanized Steel | SS200/SS300 Series | |
| W4 | SS200/SS300 Series | SS200/SS300 Series | SS200/SS300 Series |
| W5 | SS316 | SS316 | SS316 |
★ Advantages
• Uniform pressure distribution delivers excellent sealing effect and effectively stops leakage.
• Simple structure, easy to install, adjust and remove with a common screwdriver.
• Great vibration resistance, hardly loosens under long-term vibration and pressure.
• Various band widths and size ranges are available to meet diverse matching demands.
• Cost-effective and highly versatile, ideal for bulk use and daily maintenance.

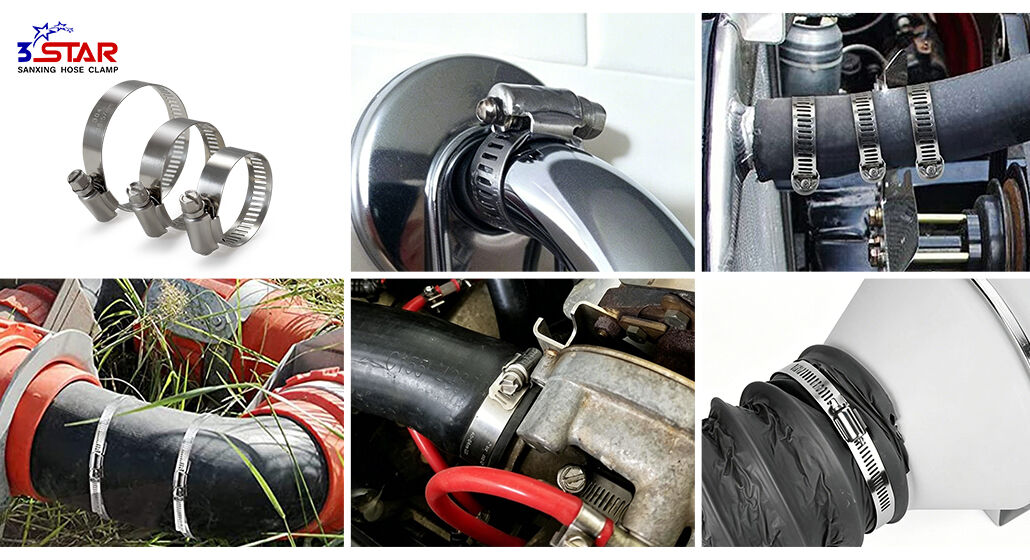

★ Application
• Generally used in small diameter applications such as air&fuel lines
• Automobiles,plumbing,home and garden
• Industrial applications

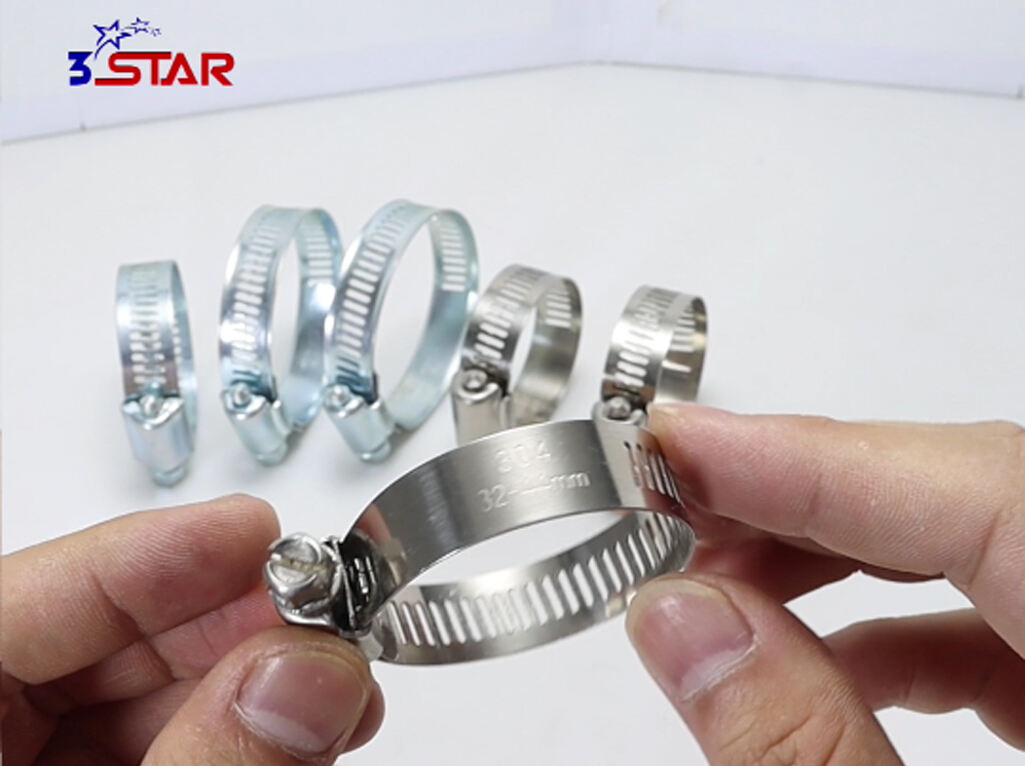

★ Video
