British Type Bridge Hose Clamp
• Unique bridge structure for even force distribution and enhanced sealing.
• High structural strength enhances load capacity and resists high operating
pressures
- ★ Product Description
- ★ Product Drawings
- ★ Material
- ★ Advantages
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description
This bridge hose clamp adopts a reinforced bridge-style structure and classic worm drive mechanism. The integrated bridge design optimizes force distribution, delivering reliable sealing and fastening for various hoses. It is a widely used standard fastener for general industrial, automotive and plumbing pipeline connections.
| Parameters | Details |
| Bandwidth*Thickness | 9*0.8mm |
| Size | 30-50mm to all |
| Screw | 7mm |

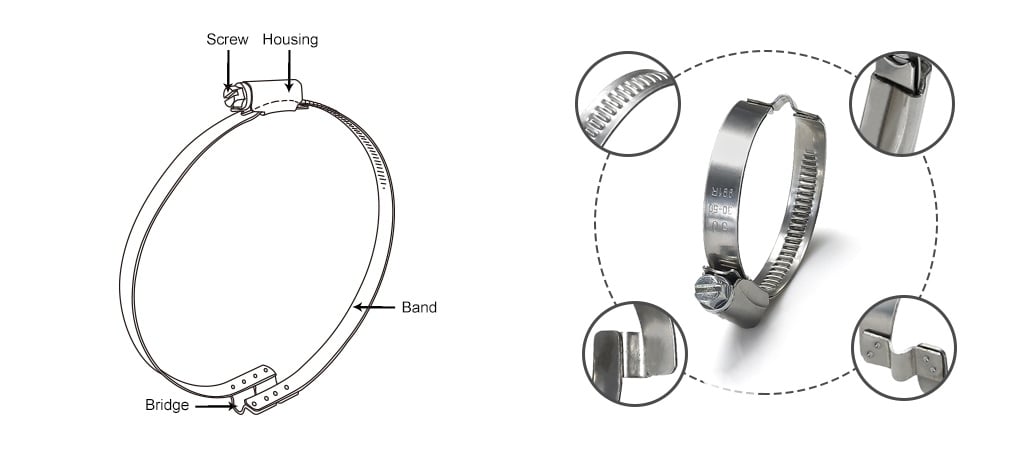

★ Product Drawings
★ Material
| Material | Band | Screw | Housing |
| W2 | SS200/SS300 Series | Galvanized steel | SS200/SS300 Series |
| W4 | SS200/SS300 Series | SS200/SS300 Series | SS200/SS300 Series |
| W5 | SS316 | SS316 | SS316 |
★ Advantages
• Reinforced bridge structure enhances overall rigidity and resists deformation under pressure.
• Uniform clamping force around the hose ensures excellent sealing and prevents leakage.
• Smooth band edges avoid scratching or damaging hose surfaces during use.
• Great vibration resistance, not easy to loosen in vibrating working environments.
★ Application
• Industrial pipes
• Large ventilation ducts
