Double Ear Hose Clip
• Ear clip double has no screw
• The assembly is fast,simple and safe thanks to the pinching of the ears
• The two ears enable a better and more constant sealing force
- ★ Product Description
- ★ Material
- ★ Product Drawings
- ★ Advantages
- ★ Application
- ★ Video
- ★ Recommended Products
★ Product Description
The Double Ear Hose Clip is a permanent-type hose clamp designed for secure and leak-proof connections between hoses and fittings. It features a dual-ear compression structure, which, when crimped with special tools, generates a strong and uniform 360° clamping force around the hose.
| Parameters | Details |
| Bandwidth |
Zinc Plated:7.0/7.5/9.0/9.5mm Stainless Steel:7.0/7.5/8.0/8.5/9.0/10.0mm |
| Thickness |
Zinc Plated:0.7/0.9/1.0/1.2/1.3/1.4/1.5mm Stainless Steel:0.6/1.0mm |
| Size | 5-7mm to all |
| Surface | Silver/White Zinc-plated |
★ Material
| Material | Band |
| W1 | Galvanized steel |
| W4 | SS200/SS300 Series |

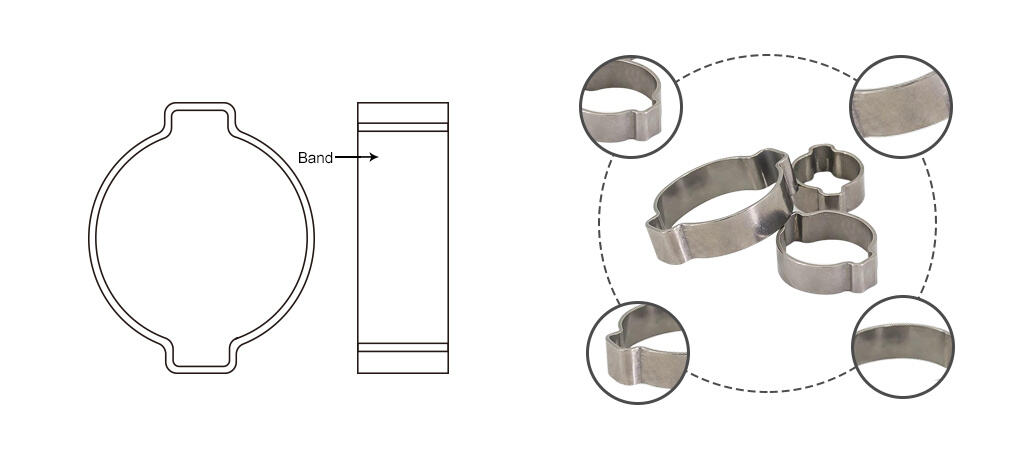

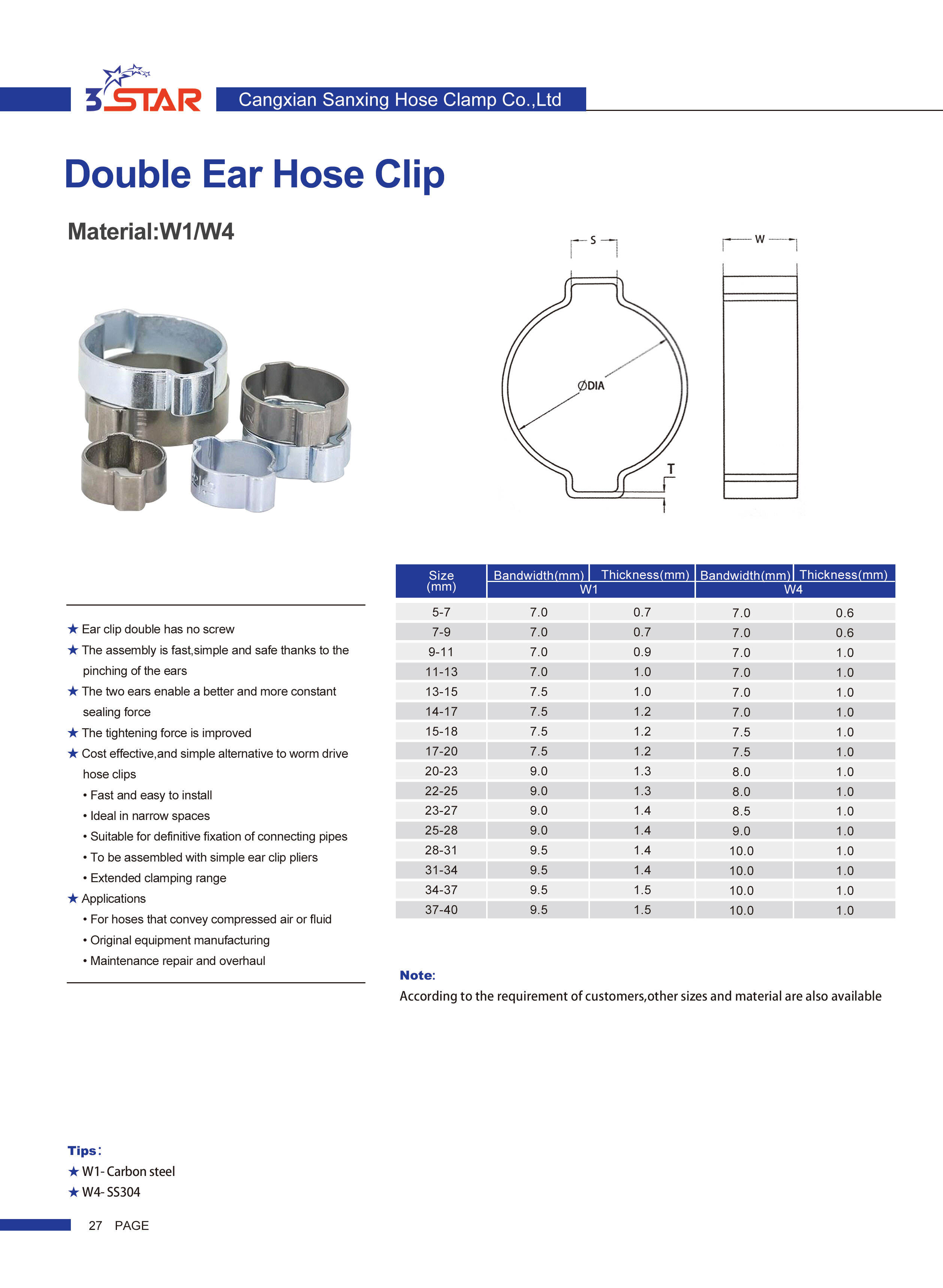

★ Product Drawings
★ Advantages
• Ear clip double has no screw
• The assembly is fast,simple and safe thanks to the pinching of the ears
• The two ears enable a better and more constant sealing force
• The tightening force is improved
• Cost effective,and simple alternative to worm drive hose clips
★ Application

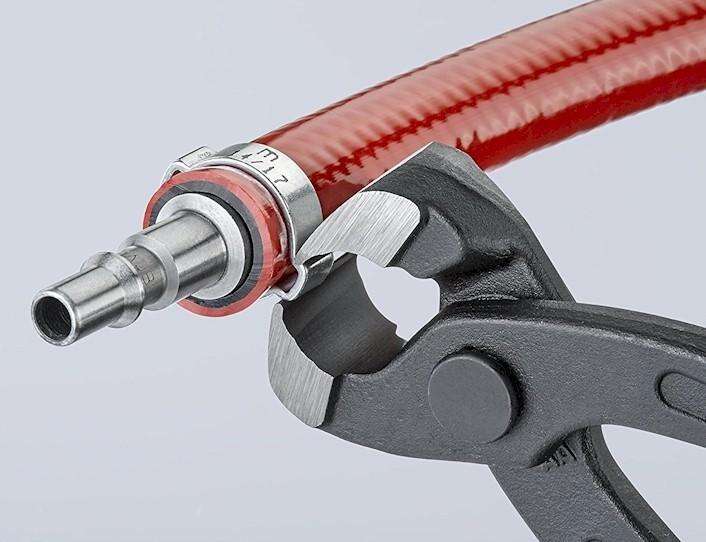

• For hoses that convey compressed air or fluid
• Original equipment manufacturing
• Maintenance repair and overhaul

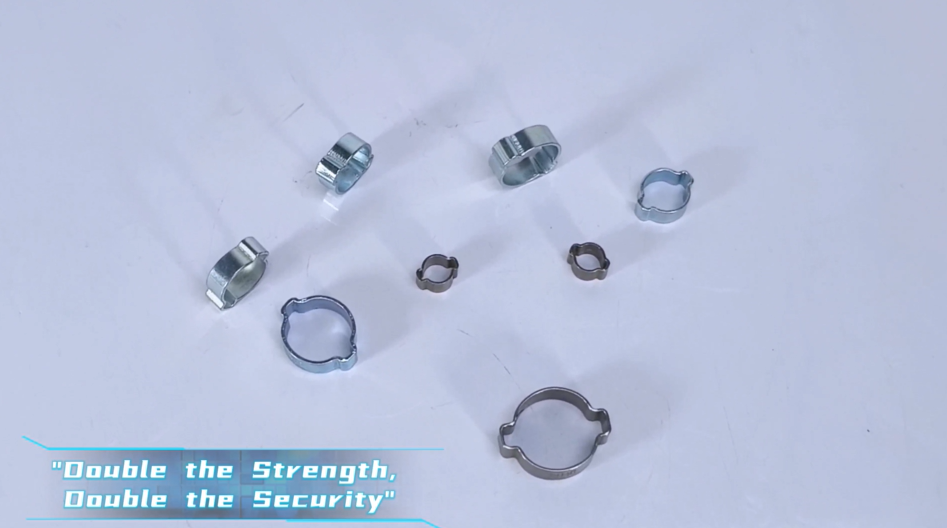

★ Video
