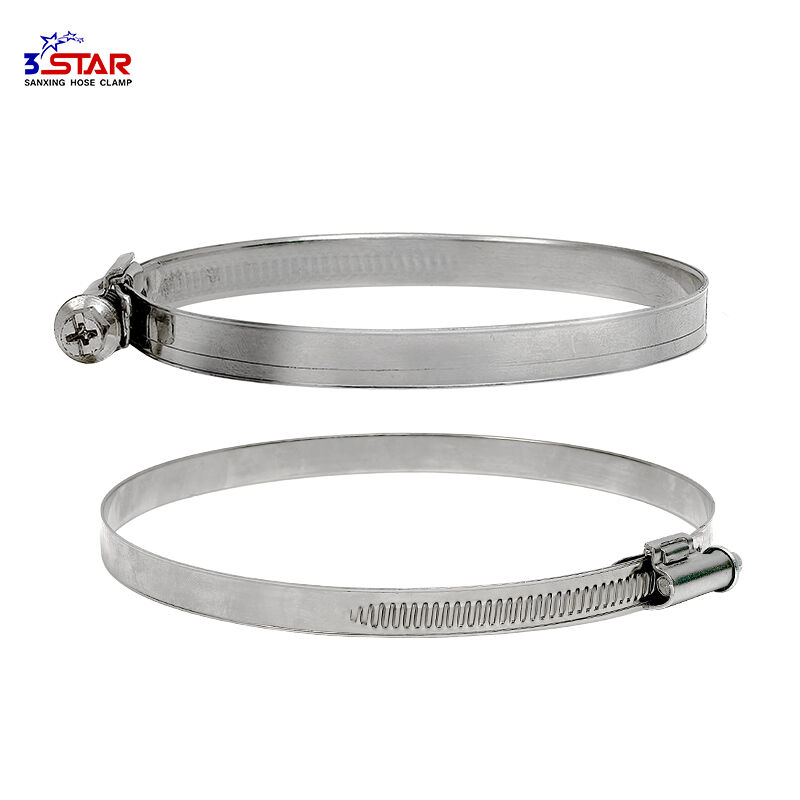

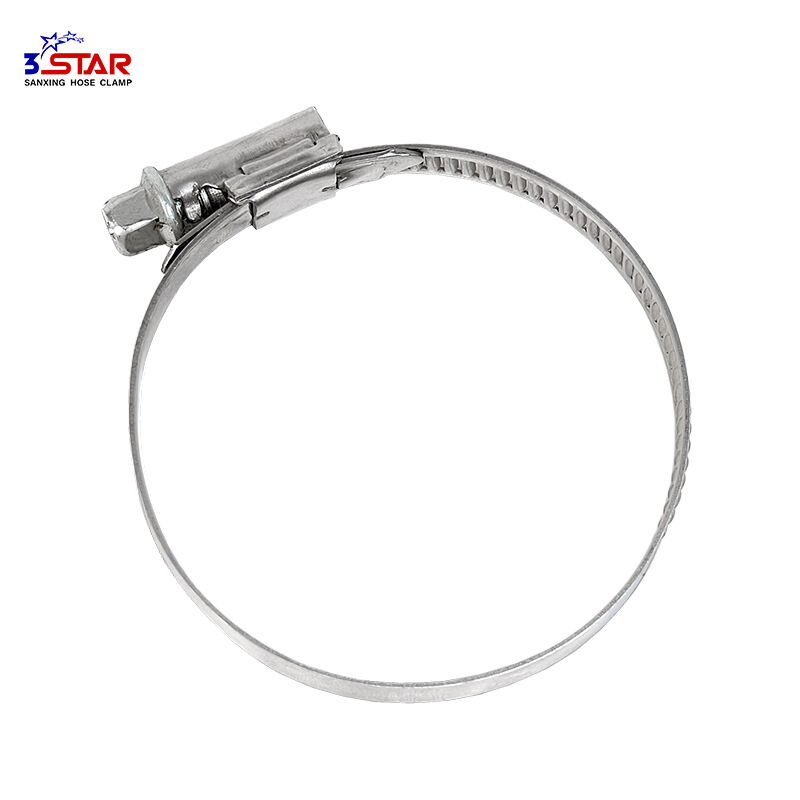

Partial Head German Type Hose Clamp

• Special partial head design

• Uniform clamping force

• Good vibration resistance

• High corrosion resistance

Appurtenance:

★ Product Description
★ Product Drawings
★ Material
★ Advantage

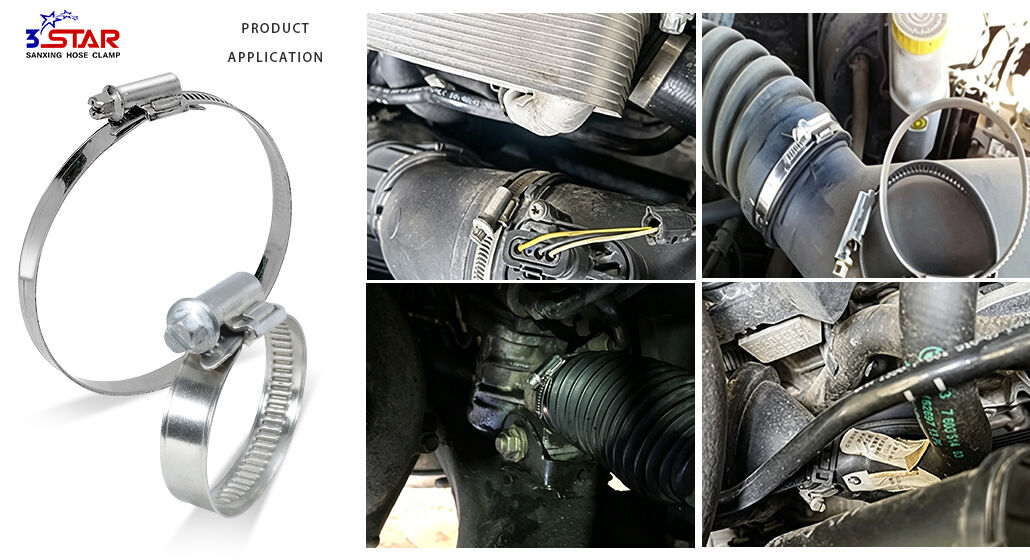

★ Application
★ Video
★ Recommended Products

★ Product Description

Partial Head German Type Hose Clamp is a upgraded version of standard German hose clamp, designed with a partial narrow head structure. It adopts worm gear drive principle, features thin and smooth band, rounded edge, small size and flexible installation. The partial head design saves installation space and perfectly fits narrow, confined and crowded pipe mounting positions.

Parameters	Details
Bandwidth	9/12mm
Thickness	Zinc Plated:0.8mm Stainless Steel:0.7mm
Size	8-12mm to all
Screw	7mm
Screw Slot	"+" or "-"

★ Product Drawings

★ Material

Material	Band	Screw	Housing
W1	Galvanized steel	Galvanized steel	Galvanized steel
W2	SS200/SS300 Series	Galvanized steel	SS200/SS300 Series
W4	SS200/SS300 Series	SS200/SS300 Series	SS200/SS300 Series
W5	SS316	SS316/SS304	SS316

★ Advantage

• Space-Saving Partial Head Design:Compact narrow head structure fits tight and limited installation spaces where standard full-head clamps cannot be installed.

• Even & Stable Clamping Force:Precise worm drive delivers uniform pressure, no damage to hose surface, excellent leak-proof sealing effect.

• Premium Stainless Steel Material:Anti-rust, anti-corrosion, acid and alkali resistant, suitable for long-term use in harsh environments.

• Vibration Resistance & No Loosening:High structural hardness, not easy to slip or loosen under vibration, high temperature and working pressure.

• Easy Installation & Adjustment:Convenient screwdriver tightening, stepless diameter adjustment, reusable and easy for later maintenance.

• Smooth Burr-Free Band Edge:Polished smooth edge avoids cutting or scratching rubber, silicone and plastic hoses.
