American Type Hose Clamp: Product Overview & Technical Introduction

Apr 22, 2026

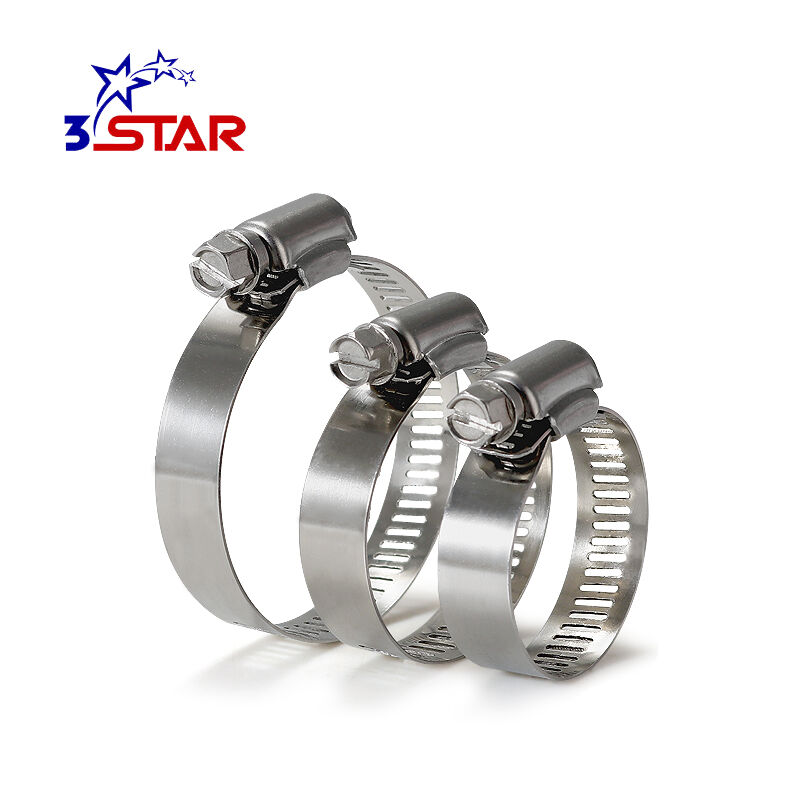

1. What Is an American Type Hose Clamp?

American Type Hose Clamp (also called worm gear hose clamp) is a widely used fastener designed to secure hoses/tubing to fittings. Originated and popularized in the United States, it features a perforated steel band and a worm gear screw mechanism for precise clamping force adjustment.

2. Core Structure & Working Principle

Band: Stainless steel (201/304/316) or carbon steel with rectangular through-holes for screw engagement.
Screw: Hex/slotted head (1/4” or 5/16” size), galvanized or stainless steel.
Housing: Integrated design to prevent screw detachment.
Working Principle: Rotating the screw drives the worm gear, which meshes with the band’s slots to tighten/loosen the clamp diameter for a leak-proof seal.

3. Key Specifications & Standards

Common Band Widths: 1/2” (12.7mm, standard) / 5/16” (8mm, micro).
Material Grades (W-Series):
- W1: Galvanized steel (all parts)
- W2: Galvanized screw + 304 stainless band/housing
- W4: 304 stainless steel (all parts)
- W5: 316 stainless steel (all parts, corrosion-resistant).
Compliance: Meets SAE J1508 Type F industry standard.
Clamping Range: 6mm–165mm (varies by size).

4. Main Advantages

Easy Adjustment: Tool-friendly design (screwdriver/hex key) for on-site fine-tuning.
Versatility: Compatible with rubber, PVC, silicone hoses; ideal for automotive, industrial, plumbing, agricultural, and marine applications.
Durability: Stainless steel options resist rust, chemicals, and high temperatures.
Cost-Effective: Simple structure with lower production and maintenance costs.

5. Typical Applications

Automotive: Radiator hoses, fuel lines, vacuum hoses.
Industrial: Fluid transfer pipelines, machinery lubrication systems.
Agriculture: Irrigation pipes, farm equipment hoses.
Marine: Boat plumbing, seawater-resistant connections (W5 grade).
General Hardware: Garden hoses, household appliances.

6. American vs. German Type Hose Clamps

Feature	American Type	German Type (DIN 3017)
Surface	Perforated band	Smooth, non-porous band
Edge Design	Rounded edges	Rolled edges (hose-friendly)
Adjustment Range	Wide	Narrower
Pressure Rating	Medium	High
Cost	Lower	Higher

7. Installation Tips

Select the correct clamp size (range covers hose outer diameter).
Place the clamp around the hose-fitting joint.
Tighten the screw gradually to avoid over-tightening (which may damage the hose).
Ensure the clamp is positioned at the center of the joint for even pressure distribution.
